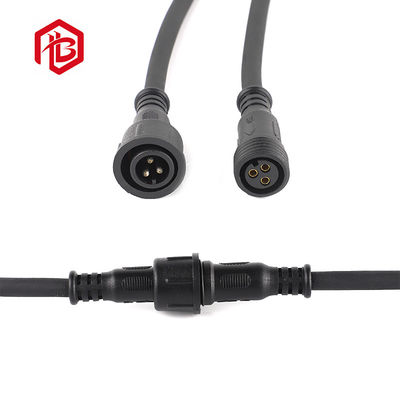

Screw Locking 2 3 4 Pin 22AWG Waterproof Cable Connector

Screw Locking 2 3 4 Pin 22AWG Waterproof Cable Connector
Screw Locking 2 3 4 Pin 22AWG Waterproof Cable Connector Screw Locking 2 3 4 Pin 22AWG Waterproof Cable Connector Screw Locking 2 3 4 Pin 22AWG Waterproof Cable Connector Screw Locking 2 3 4 Pin 22AWG Waterproof Cable Connector

Large Image :  Screw Locking 2 3 4 Pin 22AWG Waterproof Cable Connector

Product Details:

Place of Origin: China
Brand Name: Bett
Certification: UL,CCC,ROHS,CE,TUV
Model Number: M19

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union, PayPal, L/C
Supply Ability: 100000 sets/ week
Detailed Product Description
Material: Nylon/ PVC Color: Black
Connector Type: Waterproof Connector Cable Length: Per Your Requirement
Warranty: 2 Yeras Connector Type: Underground Cable Connector
High Light:

22AWG Watertight Cable Connector

,

Screw locking Watertight Connector

,

bett Waterproof Cable Connector

                IP68 2 3 4 Pin M19 Watertight Cable Connector 22AWG LED Strip Waterproof Connector



Detailed Product Description



Product: 20A 3 Pin Waterproof Panel Mount Connector Contact Diameter/number: ∅ 3.0mm
Waterproof Degree: IP 67 Diameter Range: ∅ 6.5mm~∅ 11mm
Current Rating: 20A Voltage Rating: 300V

Bett M19 20A 3 Pin Stable Waterproof Panel Mount Connector Plug Socket IP67



Main features of M19 series 3 Pin Waterproof panel mount connector IP67:



• the current/ voltage of waterproof panel mount connector are 20A/300V.

• the withstanding voltage is 1500V AC.
•​ Operate temperature: -45°C~+85°C

• The waterproof level is IP67.

• M19 series 2-22 pins are available and for varies industrial demands. male ,female and socket are available.
• High current application safety and stable wire. 1.5mm~2.5mm² wire for 3 pin M19 series Push Locking waterproof panel mount connector.



Operation Parameters
Voltage Rating 300VAC max
Current Rating 20A max
Min Wire Size OD 3.0mm ~ 6.5mm
Max Wire Size OD 6.5mm ~ 10mm
Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2



Features:

  • Rated current: 20A/10rms.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved


Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length



Applicaiton of Bett M19 Connectors

  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


FAQ



1. Q: What type waterproof connector do you have?


A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.



2.Q:Is the sample avaliable and free?

A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.



3.Q: Can you assured the quality?

A: Yes, weve gained the CE, RoHS, ip65-ip68, UL certification. And weve have strict QC team, all products will be tested before delivery.



4.Q: Whats the terms of payment?

A: We can accept T/T, LC, Paypal and Western Union



5.Q: Whats the delivery time?

A: It depends on the quantity, as usual it will takes 3-5 for small quantity.







Product Display



Screw Locking 2 3 4 Pin 22AWG Waterproof Cable Connector 0Screw Locking 2 3 4 Pin 22AWG Waterproof Cable Connector 1Screw Locking 2 3 4 Pin 22AWG Waterproof Cable Connector 2
