CCC CE RoHS Approved M10 300V IP67 IP68 Cable Connector

CCC CE RoHS Approved M10 300V  IP67 IP68 Cable Connector
CCC CE RoHS Approved M10 300V  IP67 IP68 Cable Connector CCC CE RoHS Approved M10 300V  IP67 IP68 Cable Connector CCC CE RoHS Approved M10 300V  IP67 IP68 Cable Connector

Large Image :  CCC CE RoHS Approved M10 300V IP67 IP68 Cable Connector

Product Details:

Place of Origin: China
Brand Name: Bett
Certification: CCC,ROHS,CE
Model Number: M10

Payment & Shipping Terms:

Minimum Order Quantity: 10 sets
Price: Negotiable
Packaging Details: Standard export carton
Delivery Time: 3-7work days
Payment Terms: T/T, Western Union,Paypal, L/C
Supply Ability: 100000sets/week
Detailed Product Description
Color: Black/ White Material: Nylon
Certificate: CE/ROHS/IP Cable Length: Per Your Requirement
Cable Guage: Per Your Requirement Application: Automotive,LED Street Light
High Light:

IP67 Waterproof Male Female Connector

,

CE Waterproof Male Female Connector

,

M10 waterproof Connector

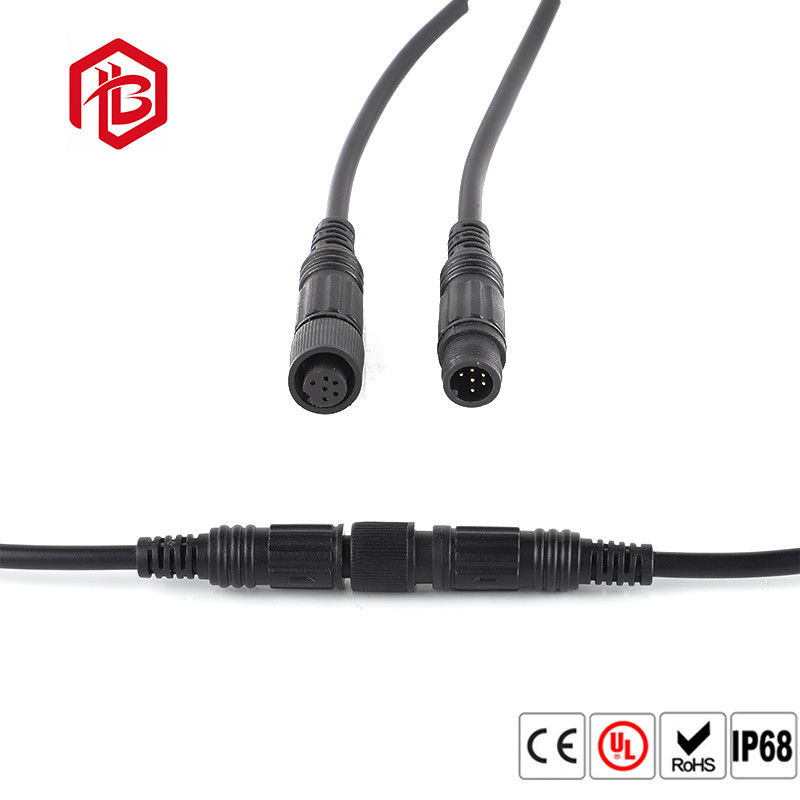

 Bett M10 Nylon Watereproof Male Female Connector For LED Lighting LED Display



Detailed Product Description



Protection Level: IP68 Material: Nylon
Pin: 2 to 4pin      Current Rating: 1-5A
Model: M10 Voltage Rating: 300V




Product Parameter



Connector M10
2P 3P 4P Waterproof Cable Connector
Wire 0.3-1.0MM²
Color Black/White
Length Optional
Voltage Rating AC300V
Current Rating 1A~5A
Times Of Plug 500
Withstand Voltage AC110V-500V
Temperature Rating -20~+85℃
Waterproof Level IP68/IP67
Max Cable OD 7.5mm
Pin Numbers 2-4 wires
Certifications CE/UL/CCC/ROHS
Application Our products are widely used in LED lighting, Flexible strip outdoor display, electrical equipment, automation machines, electrical vehicle and etc...





Features:

  • Rated current: 1-5A/10rms.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved


Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length


FAQ



1. Q: What type waterproof connector do you have?


A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.



2. Q:Is the sample avaliable and free?

A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.



3. Q: Can you assured the quality?

A: Yes, weve gained the CE, RoHS, ip65-ip68, UL certification. And weve have strict QC team, all products will be tested before delivery.



4. Q: Whats the terms of payment?

A: We can accept T/T, LC, Paypal and Western Union



5. Q: Whats the delivery time?

A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
