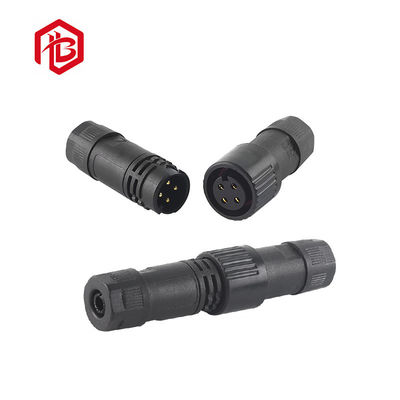

CCC CE ROHS Quick Locking M19 10A Waterproof Connectors

CCC CE ROHS Quick Locking M19 10A Waterproof Connectors
CCC CE ROHS Quick Locking M19 10A Waterproof Connectors CCC CE ROHS Quick Locking M19 10A Waterproof Connectors CCC CE ROHS Quick Locking M19 10A Waterproof Connectors

Large Image :  CCC CE ROHS Quick Locking M19 10A Waterproof Connectors

Product Details:

Place of Origin: China
Brand Name: Bett
Certification: CCC,CE,ROHS
Model Number: M19

Payment & Shipping Terms:

Minimum Order Quantity: 10sets
Price: Negotiable
Packaging Details: Standard export certon
Delivery Time: 3-7work days
Payment Terms: T/T, Western Union,Paypal, L/C
Supply Ability: 100000sets/week
Detailed Product Description
Protection Level: IP68/IP67 Color: Black
Warranty: 3 Years Certificate: CE/ROHS/IP
Current Rating: 5-10A Model: M19
High Light:

Quick Locking 10A Waterproof Connector

,

CE Waterproof Connector

,

M19 Waterproof Connector

             CE ROHS Certificate 10A Waterproof Connector Quick Locking Connector

Detailed Product Description

Connecting Model:Screw LockingContact Pin:7 Pin Plug Socket
Color:BlackCurrent Rating:10-20A
Feature:High DurabilityVoltage Rating:300V


Bett waterproof connector is male to female assembly connector with favorable waterproof level IP67.
It is suit for the outer diameter 3.5mm-12mm cable, its push fixing type is easy and safe for your outdoor operation.
Our waterproof connectors are widely applied in led, power, driver, controller, marine, electrical equipment, etc.



Operation Parameters
Voltage Rating300VAC max
Current Rating20A max
Min Wire Size OD3.5mm ~ 6.5mm
Max Wire Size OD6.5mm ~ 12mm
Max.Cable Cross Section Area0.3mm2 ~ 2.5mm2


Features:

  • Rated current: 20A/10rms.
  • 2-4pin power supply, 5-9pin signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3.5~12mm
  • UL, TUV, CB, CCC, CE, RoHS approved


Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length


Applicaiton of Bett M19 Connectors

  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


FAQ

1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2 .Q: Can you assured the quality?
A: Yes, weve gained the CE, RoHS, ip65-ip68, UL certification. And weve have strict QC team, all products will be tested before delivery.

3.Q: Whats the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union




Product Display

CCC CE ROHS Quick Locking M19 10A Waterproof Connectors 0CCC CE ROHS Quick Locking M19 10A Waterproof Connectors 1
