Electric Bike M6 Male 300V 3 Pin Waterproof Connector

Electric Bike M6 Male 300V 3 Pin Waterproof Connector
Electric Bike M6 Male 300V 3 Pin Waterproof Connector Electric Bike M6 Male 300V 3 Pin Waterproof Connector Electric Bike M6 Male 300V 3 Pin Waterproof Connector Electric Bike M6 Male 300V 3 Pin Waterproof Connector

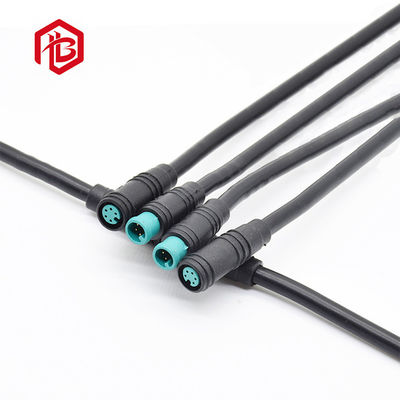

Large Image :  Electric Bike M6 Male 300V 3 Pin Waterproof Connector

Product Details:

Place of Origin: China
Brand Name: Bett
Certification: CCC,CEE,ROHS,IP
Model Number: M6 Connector

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Delivery Time: 3-7 Work days
Payment Terms: T/T, L/C,PayPal, Western Union
Supply Ability: 100000sets/week
Detailed Product Description
Rated Voltage: 300V Rated Current: 2-10A
Color: Black/White Material: Nylon+ PVC
Optional Cores: 2-4 Pins Max OD: 3.5-7.8mm
High Light:

300V 3 Pin Waterproof Connector

,

M6 Male Waterproof Connector

,

300V Electric Bike Connector

Electric Bike M6 Male 300V 3 Pin Waterproof Connector



The detaild of the Colors M6 Connector



Protection Level: IP65 Connecting Model: Waterproof M6  Connector and Plug
Pin: 2 to 4 pin      Current Rating: 2-4 Amper
Gender:  Male+ Female Voltage Rating: 60- 110 V


Widely used for the belowed application:


Waterproof M6 connector is a great suitable for E-bike, Communication Application, Power, Automotive, CCTV, and other electrical equipment need waterproof joint use. And it posses many colors, such as blue, red, yellow and so on.



Product Parameter



Specifications
Connecting mode M6 Waterproof PVC plug
Protection level IP65
Cable specification 0.2mm2 ~ 0.3mm2 /22-24 AWG
Diameter range Φ3.5 mm ~Φ5 mm
Operating Temperature -20-+80
Current rating(A) 2-4A
Operating voltage 60-110 V
Times of plug 1500 mating cycles





Features:

  • Rated current: 2-4/10rms.
  • 2-4pin power supply, 5-9pin signal is optional.
  • IP65 rating
  • Voltage rating: 110V
  • Cable Range: 3.5~5 mm
  • UL, RoHS approved


Main properties

  • Sealed against water (IP65)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized pins, material, cable size and length




FAQ



1. Q: What type waterproof connector do you have?


A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.



2.Q:Is the sample avaliable and free?

A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.



3.Q: Can you assured the quality?

A: Yes, we’ve gained the CE, RoHS, ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery. And you can also visit our factory, warehouse and mould room.



4.Q: What’s the terms of payment?

A: We can accept T/T, LC, Paypal and Western Union.



5.Q: What’s the delivery time?

A: It depends on the quantity, as usual it will takes 3-5 for small quantity.







Product Display

Electric Bike M6 Male 300V 3 Pin Waterproof Connector 0Electric Bike M6 Male 300V 3 Pin Waterproof Connector 1Electric Bike M6 Male 300V 3 Pin Waterproof Connector 2
