| Model Number: | Cable Harness | Pin: | 2~20P |
|---|---|---|---|
| Application: | Home Appliance | Pitch: | 1.5mm |
| Cable Length: | Customized | Service: | ODM/OEM |
| High Light: | Electronic Connector Flat Ribbon Cable Assembly,Wiring Harness Flat Ribbon Cable Assembly,OEM service Flat Ribbon Cable Assembly |
||

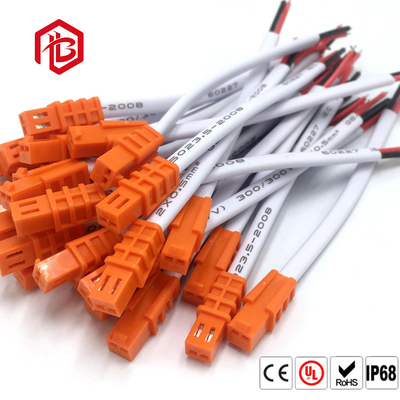

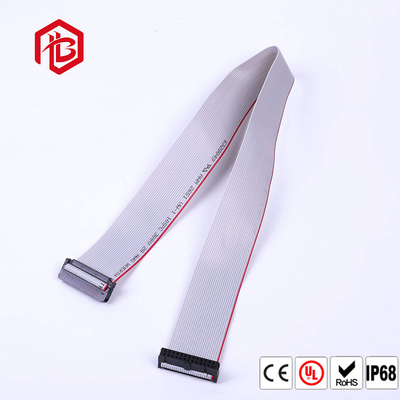

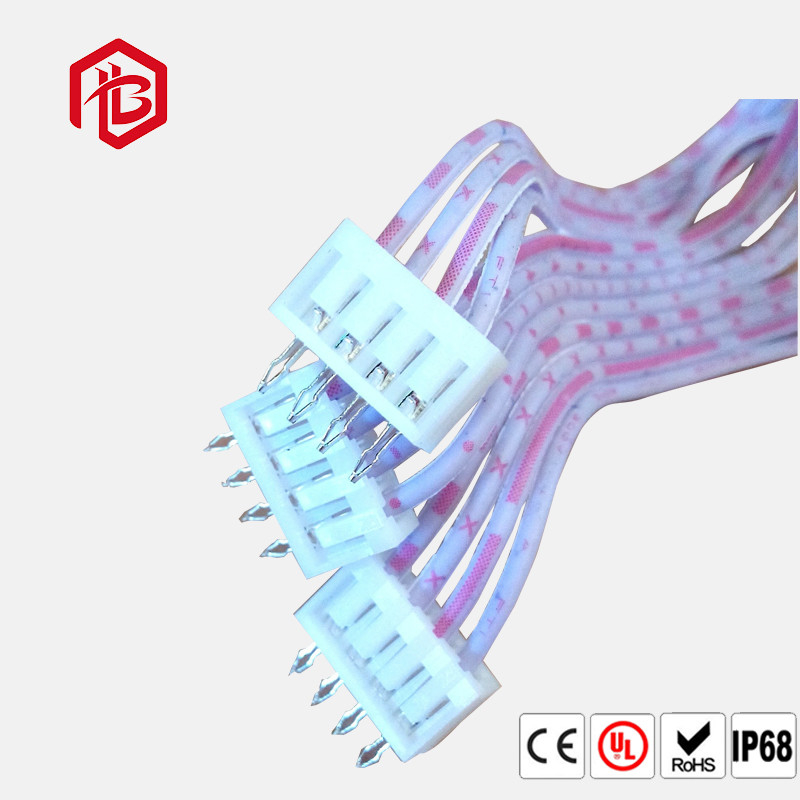

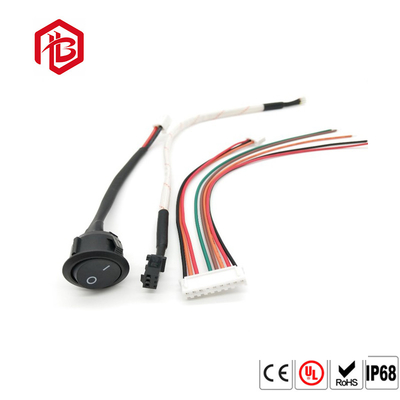

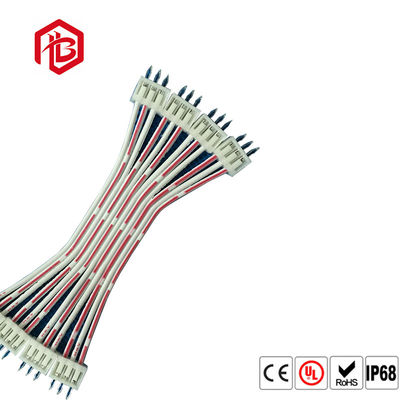

OEM Supplier Customized Car Auto Flat Ribbon Cable Assembly Electronic Connector Wiring Harness
|
Product name
|
JST SM 2P/3P/4P/5P 2.50mm pitch Terminal Wire harness
|
|
Material
|
PVC,PET, PU, Siliocne, Rubber, EPDM, Copper
|
|
Connector
|
Connector of IST, Molex
|
|
Wire
|
14-24AWG
|
|
Pins
|
2pin, 3pin,4pin,---18pin custom pins
|
|
Color
|
Red, black, yellow, Customized Color
|
|
Length
|
customized
|
|
Sample
|
Avaiable
|
|
Application
|
Automative |
|
Delivery time
|
3-10days
|
1 . The part number of the connector
Main characteristics
1. Corrosion resistance
Product Details
|
Current rating
|
1.0 A AC, DC (AWG #28)
|
|
Voltage rating
|
50 V AC, DC
|
|
Temperature range
|
-25°Cto +85°C
(including temperature rise in applying
electrical current)
|
|
Contact resistance
|
Initial value/ 20 mΩ max.
After environmental tests/ 40 mΩ max.
|
|
Insulation resistance
|
100 MΩ min
|
|
Withstanding voltage
|
500 VAC/minute
|
|
Applicable wire
|
Conductor size/ AWG #32 to #28
Insulation O.D./ 0.4 to 0.8 mm
|
|
Our advantage
|
10+ years of experience,
can accept ODM, OEM.
have IS9001 certification.
|
Q1: Are you a factory or trading company?
A1: We are factory.
Q2: Do you accept to customize product?
