Product Details:
Payment & Shipping Terms:
|
| Length: | Customize | Waterproof Level: | IP68 |
|---|---|---|---|
| Wire Color: | Black | Material: | PVC/Rubber/Nylon |
| Operating Temperature: | -20℃-+80℃ | Warranty: | 2 Years |
| High Light: | ip68 m16 extension docking plug,male female m16 extension docking plug,Customized m16 extension docking plug |
||

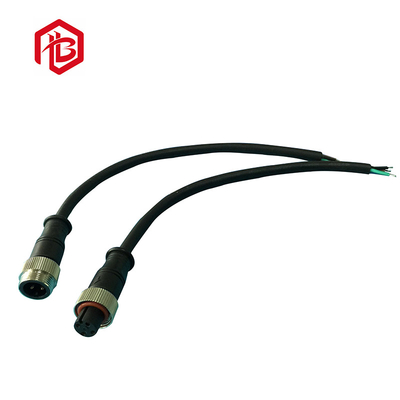

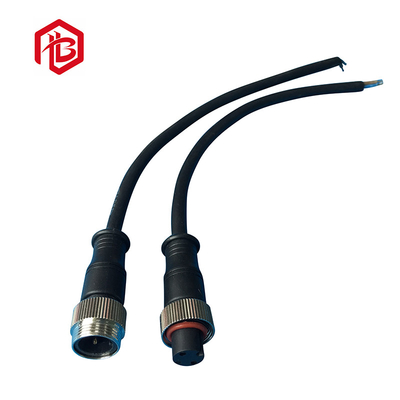

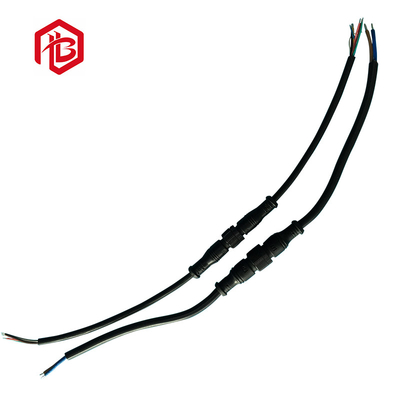

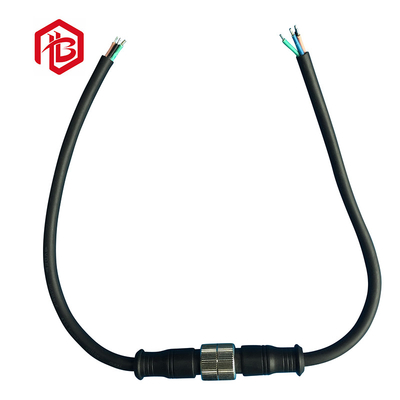

Customized M16 Extension Male Female Docking Plug Pvc Copper Core Wire Waterproof Connector
| Protection Level: | IP68 | Type of connector usage: | Date Connector |
|---|---|---|---|
| Pin: | 2 3 4 pin | Current Rating: | 4-12A |
| Type: | Metal M16 Connector | Voltage Rating: | 250-300 V |
Description of Metal M16 Connector
Waterproof Metal M8 Date connector is a good choice for your application, widely applicable,highly practical,convenient,thanks to it has the higher waterproof level-- IP68, it can be used data transfer application ,sensor application,outdoor LED,cars and ships,LED drives power supply,LED display screen,lighthouse and industrial equipment etc.
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 12A max |
| Min Wire Size OD | 3.5mm |
| Max Wire Size OD | 8mm |
| Max.Cable Cross Section Area | 0.2mm2 ~ 0.5mm2 |
Features:
Main characteristics
Product Analysis:(Customizable line lengh)
Applicaiton of Bett E27 Connectors
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17 series type waterproof connector,and make more than 3000types waterproof connector cable. Most of our connector is customized. We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2. Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
3. Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
4. Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5. Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
