Male Female 7 8 9 Pin M14 Waterproof Electrical Connector Socket

Certification
China Shenzhen Bett Electronic Co., Ltd. certification
China Shenzhen Bett Electronic Co., Ltd. certification
Customer Reviews
It's a good company and have better service.these are high quality and fast as always!

—— Allen Wood

Specialized on waterproof connector for many years!Awesome seller, very good products. THANK YOU!

—— Martin Bledsoe

I'm Online Chat Now

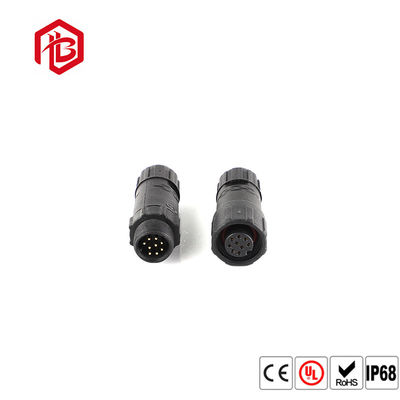

Male Female 7 8 9 Pin M14 Waterproof Electrical Connector Socket

Male Female 7 8 9 Pin M14 Waterproof Electrical Connector Socket
Male Female 7 8 9 Pin M14 Waterproof Electrical Connector Socket Male Female 7 8 9 Pin M14 Waterproof Electrical Connector Socket Male Female 7 8 9 Pin M14 Waterproof Electrical Connector Socket

Large Image :  Male Female 7 8 9 Pin M14 Waterproof Electrical Connector Socket

Product Details:

Place of Origin: China
Brand Name: Bett
Certification: CCC,CE,ROHS
Model Number: M14

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Delivery Time: 3-7work days
Payment Terms: T/T, Western Union,Paypal, L/C
Supply Ability: 100000sets/week
Detailed Product Description
Product Name: M14 Material: Nylon
Certificate: CE/ROHS/REACH IP Rating: IP67/68
Warranty: 3 Years Optional Cores: 2 To 9
Highlight:

10A Waterproof Connectors

,

9 Pin 10A Waterproof Connectors

,

M14 10A Waterproof Connectors

Male Female 10A Waterproof Connector Socket Electrical M14 2 to 9pin Connector



Detailed Product Description

Protection Level: IP68 Connecting Model: Push Locking
Pin: 2 to 8pin      Current Rating: 10A
Model: M14 Voltage Rating: 240V




Operation Parameters
Voltage Rating 240VAC max
Current Rating 10A max
Min Wire Size OD 3.5mm ~ 5mm
Max Wire Size OD 5mm ~ 9mm
Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2



Features:

  • Rated current: 10A.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 240V
  • Cable Range: 3~9mm
  • UL, TUV, CB, CCC, CE, RoHS approved


Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length



Applicaiton of Bett M14 Connectors

  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


FAQ



1. Q: What type waterproof connector do you have?


A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.



2. Q: How to buy your products?


A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.



3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.



4.Q:Is the sample avaliable and free?

A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.



5.Q: Whats the delivery time?

A: It depends on the quantity, as usual it will takes 3-5 for small quantity.



Product Display

Male Female 7 8 9 Pin M14 Waterproof Electrical Connector Socket 0Male Female 7 8 9 Pin M14 Waterproof Electrical Connector Socket 1
