Product Details:
Payment & Shipping Terms:
|
| Material: | Nylon/ PVC | Color: | White |
|---|---|---|---|
| Connector Type: | Waterproof Connector | Cable Length: | Per Your Requirement |
| Warranty: | 2 Yeras | Connector Type: | Underground Cable Connector |
| High Light: | 300V waterproof connector,M19 Waterproof Connector,10 A Watertight Cable Connector |
||

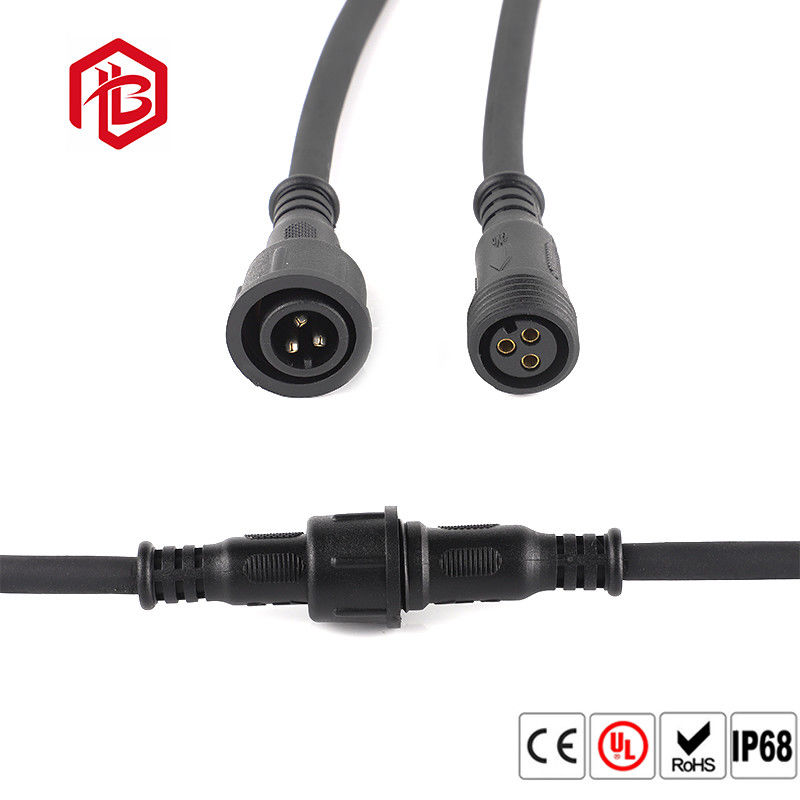

IP67 Male And Female Watertight Cable Connector 2 3 4 5 Pin For LED
Detailed Product Description
| Protection Level: | IP67 | Connecting Model: | Wire Connector |
|---|---|---|---|
| Pin: | 2 to 5 pin | Current Rating: | 10 A |
| Model: | M19 big head | Voltage Rating: | 300V |
Description of 2-5 Pole Connector
M19 big head waterproof connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP67. If you are looking for IP67 waterproof connectors, M19 big head connectors will be a perfet choice. it is widely used in many application.
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 10 A max |
| Min Wire Size OD | 3.0mm ~ 6.5mm |
| Max Wire Size OD | 6.5mm ~ 10mm |
| Max.Cable Cross Section Area | 0.3mm2 ~ 2.5mm2 |
Main characteristics
Applicaiton of Bett M19 big head Connectors
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
