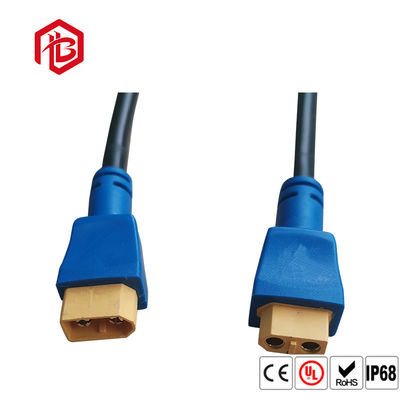

Power Plug XT60 Male Female Connector With Covers Sheath For Lipo Battery RC Planes

Power Plug XT60 Male Female Connector With Covers Sheath For Lipo Battery RC Planes
Power Plug XT60 Male Female Connector With Covers Sheath For Lipo Battery RC Planes Power Plug XT60 Male Female Connector With Covers Sheath For Lipo Battery RC Planes Power Plug XT60 Male Female Connector With Covers Sheath For Lipo Battery RC Planes

Large Image :  Power Plug XT60 Male Female Connector With Covers Sheath For Lipo Battery RC Planes

Product Details:

Place of Origin: China
Brand Name: Bett
Certification: CE CCC
Model Number: XT60 connector

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Delivery Time: 3-7work days
Payment Terms: T/T, Western Union,Paypal, L/C
Supply Ability: 100000sets/week
Detailed Product Description
Type: Gold Bullet Connector, Adapter Certificate: CE/ROHS/REACH
IP Rating: IP67/IP68 Weight: 6.7g/pair
Application: Rc Battery, RC Model, Romote Connector Gender: Male And Female
Highlight:

RC Planes xt60 male female connector

,

Lipo Battery xt60 male female connector

,

IP68 xt60 battery connector

XT60 Connectors with Covers Male Female Power Plug with Sheath for Lipo Battery RC Planes car light connector



Detailed Product Description



Recommend cable: 12AWG Material: PA66
Pin: 2 pin      Current Rating: 30 to 60 A
Model: XT60 and 90 CONNECTOR Voltage Rating: DC500 V



Description of xt60 Connector



The rated current of XT60 is 30 to 60 A, which is suitable for high-load and high-power aircraft model requirements. T-plug only 20A is more suitable for ordinary small foam propellers. XT60 is strongly recommended.



Operation Parameters
Voltage Rating DC500v
Current Rating 60A max
Contact resistance 0.45mΩ
connection material brass, gold plating
operation temperature -20℃ to 120℃



XT type plugs features



  • Super strong nylon material, high current, work under high temperature and still maintain strength, not easy to deform or melt
  • The nickel-plated special beryllium copper has the same elasticity as manganese steel, does not deform after multiple insertions and withdrawals, and has the low resistance characteristics of copper.
  • 1.24K real gold plating, up to 2U thick, to ensure stable current transmission



Specification


item
XT60 connector
Place of Origin
China

Guangdong
Type
ADAPTER
Application
Automotive
Gender
Rubber boot
Pins
2P
Rated Voltage
DC 500V
Max. continuous current
30A
Max. peak current
60A
Contact resistance
0.45mΩ
Connection material
brass, gold plating
Housing material
plastic PA
Operation temperature
-20℃ to 120℃
Usage Lifetime
1,000 times Plug-in and Pull-out
Recommend Cable Spec
12AWG





FAQ

1. Q: What type waterproof connector do you have?


A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.



2. Q:Is the sample avaliable and free?


A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.

3. Q: Can you assured the quality?


A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.

4. Q: What’s the terms of payment?


A: We can accept T/T, LC, Paypal and Western Union

5. Q: What’s the delivery time?


A: It depends on the quantity, as usual it will takes 3-5 for small quantity.




Product Display

 Power Plug XT60 Male Female Connector With Covers Sheath For Lipo Battery RC Planes 0Power Plug XT60 Male Female Connector With Covers Sheath For Lipo Battery RC Planes 1
