The circular male plug female socket is a good connection model, widely used in LED lighting, especially in outdoor application, even underwater.
Description of outdoor electrical wire connectors

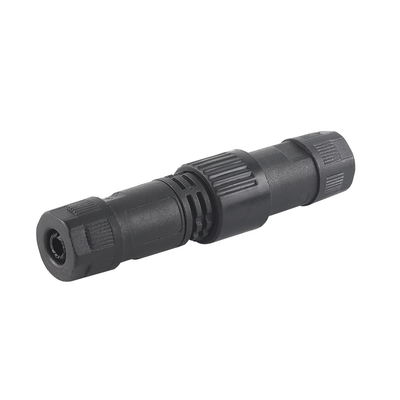

This Field Assembly 2 Way waterproof connectors is great for the application which no need soldering, no need male female connecting, easy to install and connect to each other, just by a screw driver, take only a few min. to finish the whole installation process. Will say your time and get a easy good connection.
| Operation Parameters |
| Number of Poles |
2 Pin 3Pin 4Pin available |
| Contact Resistance |
10 mΩ max |
| Min Wire Size OD |
2.5mm ~ 5.5mm |
| Max Wire Size OD |
3.5mm ~ 5.5mm |
| Max.Cable Cross Section Area |
0.3mm2 ~ 1.5mm2 |
Features:
- 2-4PIN power supply
- IP66/67 rating
- Voltage rating: 300V
- Cable Range: 3~11mm
- UL, TUV, CB, CCC, CE, RoHS approved
Main characteristics
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- socket with cover
- Cable assembly support
- Customized cable size and length
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2. Q: Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
3. Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
4. Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5. Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
