Product Details:
Payment & Shipping Terms:
|
| Protection Level: | IP68 | Warranty: | 3 Years |
|---|---|---|---|
| Certificate: | CE/ROHS/IP | Cable Guage: | Per Your Requirement |
| Current Rating: | 5A-20A | Voltage Rating: | 300V |
| High Light: | Multi Pin LED lighting Connector,PA66 LED lighting Connector,Male LED lighting Connector |
||

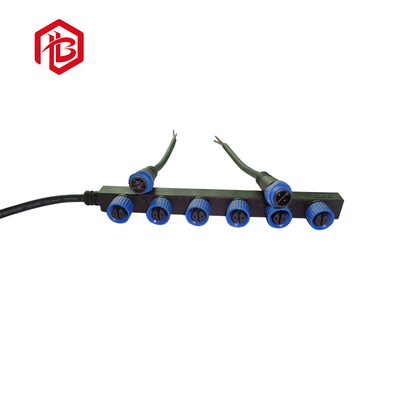

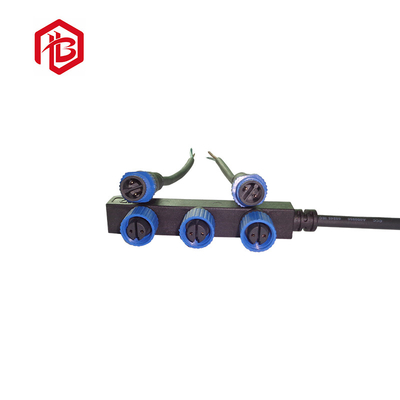

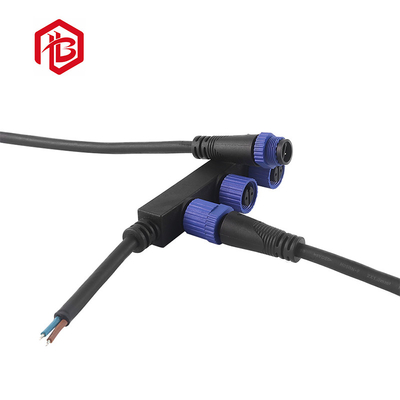

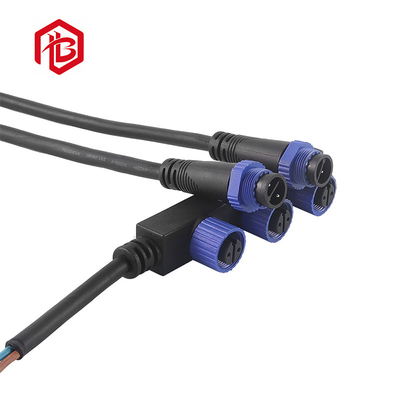

M15 Nylon Multi Pin Connector Waterproof F Shape Connector For LED Streetlamp
Detailed Product Description
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -20°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Nylon |
Description of M15 Connector
M15 waterproof connectors is in common use for led street lighting, its the CSA starndard connectors in China.Popular to all the lighting application, this thread locking connectors could support IP68 outdoor using, no matter for dimming lights, landscape lighting or floor lighting,even its is widely used in many others underwater tight request application
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 20A max |
| Optional cores | 2-4pin |
| Max Wire Size OD | 3.5mm ~ 9mm |
| Max.Cable Cross Section Area | 0.3mm2 ~ 1.5mm2 |
1. High protection level: IP68
2. Current/ voltage rating: 10A/300V
3. Any length of the cable is available.
4. dustproof cover design under off-working condition
5. connector was made by PVC/Nylon and cable was made by PVC/Rubber/PU/Silicone.
6. OEM/ODM are accepted .
7. gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
Main characteristics
Applicaiton of Bett M15 F Type Connectors
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
4.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
