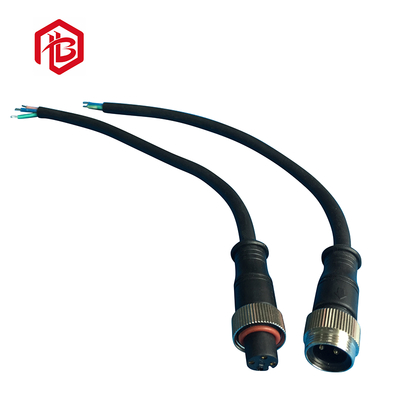

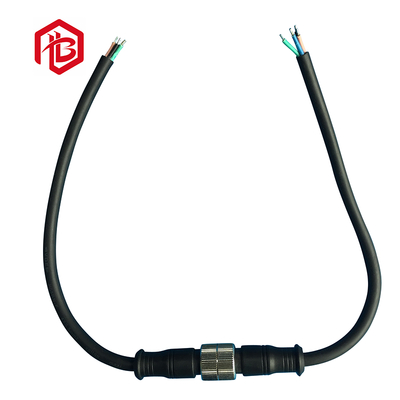

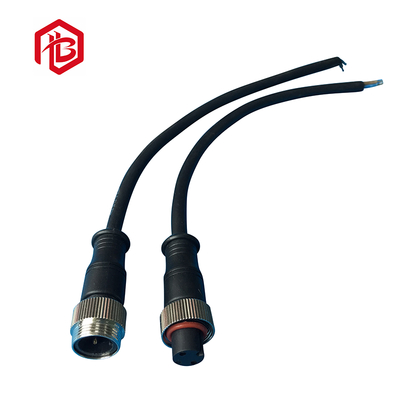

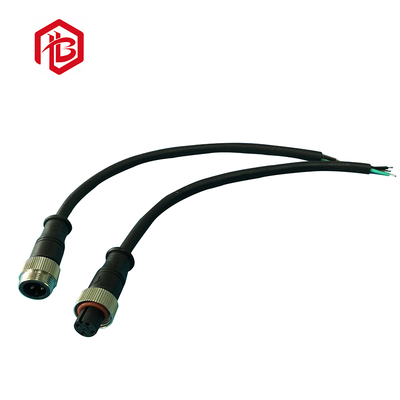

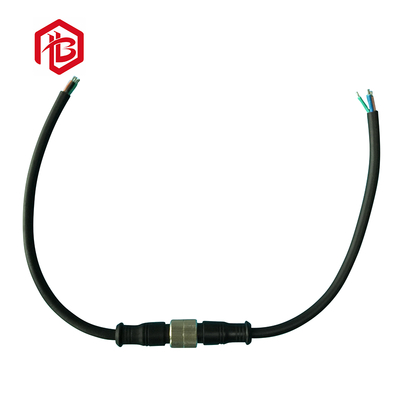

M16 Metal PVC IP68 Waterproof Circular Male Angle 2-12 Pin Connectors for Outdoor Automotive Applications

M16 Metal PVC IP68 Waterproof Circular Male Angle 2-12 Pin Connectors for Outdoor Automotive Applications
M16 Metal PVC IP68 Waterproof Circular Male Angle 2-12 Pin Connectors for Outdoor Automotive Applications

Large Image :  M16 Metal PVC IP68 Waterproof Circular Male Angle 2-12 Pin Connectors for Outdoor Automotive Applications

Product Details:

Place of Origin: china
Brand Name: GYD/BETT
Certification: CE UL
Model Number: M16

Payment & Shipping Terms:

Minimum Order Quantity: 50sets
Price: 0.8$
Delivery Time: 7Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50sets
Contact Now
Detailed Product Description

Product Description



Brand Bett
scope of application the LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens and so on
Types waterproof plug/waterproof connectors/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug
Interface type AC/DC
Shape round/flat look
Process stamping/welding/injection molding
Feature waterproof
Contact material pure phosphor copper
Joint material PVC/PBT/PA66 / PC + ABS
Some conclusions 2-8 core
Pin number 2-8 needle
line length any (mm)
Form socket, plug stamping or injection after welding
Rated voltage 24 V DC 0 (AC 110 V, 110 V)
Current rating 1-20A
Breakdown voltage 1500 V or higher (special require should be mentioned in advance)
Working temperature - 20 ~ 80 ° C
Protection grade IP68 (other requirement. When ordering, please put forward)
Wire materials PVC, rubber, silicone, PE and so on, other according to customer requirements, routine for gb RVV sheath line
Certification can according to customer's requirements with CCC, VDE, UL, ROHS, SGS, etc all kinds of wire
Appearance color black, white, transparent, etc
Normal product joint is made of PVC, wire type for CCC gb RVV sheath line, regular length for each 200 mm Can be designed and manufactured according to customer demand orientation, non-standard products
Some conclusions 2 core
Cable inside section 0.75 square (normal)
Cable length any long can be customized for customer request, (20 cm) regular long male female each When ordering, please indicate some conclusions, insider cross-sectional area square number, color, line length, tail decortication and wetting length (normal is 3 cm and 3 mm), the other orders are required to submit
