Product Details:
Payment & Shipping Terms:
|
| Material: | Nylon/ PVC | Color: | Black |
|---|---|---|---|
| Connector Type: | Waterproof Connector | Warranty: | 2 Yeras |
| IP Rating: | IP67 | Connector Type: | Underground Cable Connector |
| High Light: | L Type Waterproof Male Female Connector,4 pin Waterproof Male Female Connector,PVC Waterproof Male Female Connector |
||

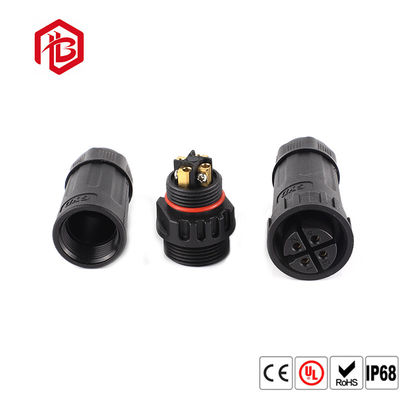

Shenzhen Bett Waterproof Male Female Connector Large L Type For Floor heating
Detailed Product Description
| Protection Level: | IP67 | Connecting Model: | Assembled Waterproof connector |
|---|---|---|---|
| Pin: | 4pin | Current Rating: | 20A |
| Model: | L type | Voltage Rating: | 300V |
Description of 4Pole Connector
L type waterproof connector is a great choice for your application, the protection level could meet IP67. If you are looking for IP67 waterproof connectors, it will be a perfet option. and it is widely used in many application. Such as, AC Power, Aviation industry, Floor heating, and Led lighting industry etc.
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 20A max |
| Min Wire Size OD | 3.0mm ~ 6.5mm |
| Max Wire Size OD | 6.5mm ~ 10mm |
| Max.Cable Cross Section Area | 0.3mm2 ~ 2.5mm2 |
Main characteristics
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
