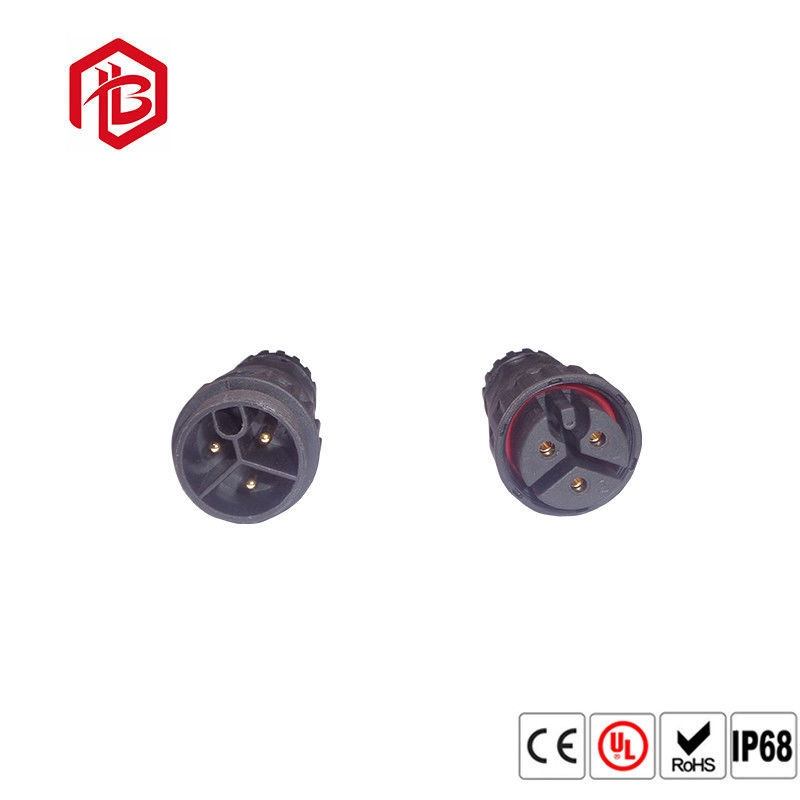

Gyd Bett M23 20A Waterproof Connectors

Gyd Bett M23 20A Waterproof Connectors
Gyd Bett M23 20A Waterproof Connectors Gyd Bett M23 20A Waterproof Connectors Gyd Bett M23 20A Waterproof Connectors Gyd Bett M23 20A Waterproof Connectors

Large Image :  Gyd Bett M23 20A Waterproof Connectors

Product Details:

Place of Origin: China
Brand Name: Bett / GYD
Certification: CCC,CE,ROHS,IP
Model Number: M23

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Delivery Time: 3-7work days
Payment Terms: T/T, Western Union,Paypal, L/C
Supply Ability: 100000sets/week
Detailed Product Description
Certificate: CE/ROHS/CCC IP Rating: IP67/IP68
Operating Temperature: -40-+105 Type: ADAPTER
Application: Power Gender: Male And Female
High Light:

M23 Waterproof Connectors


IP67 Waterproof Connector


Male Female 20A Waterproof Connectors

M23 Screw Locking 20A Waterproof Connector Male Female IP67 Circular Connector


Detailed Product Description

Protection Level: IP68 Connecting Model: Screw Locking
Pin: 2 to 4pin      Current Rating: 20A
Model: M23 Voltage Rating: 300V


Screw locking waterproof connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors, screw locking M23 connectors will be a perfet option. it is widely used in many application. such as:


  • Communications Application
  • product coding machines
  • inventory product coding
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


Operation Parameters
Voltage Rating 300VAC max
Current Rating 20A max
Min Wire Size OD 3.5mm ~ 6.5mm
Max Wire Size OD 6.5mm ~ 12mm
Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2



  • Rated current: 20A/10rms.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved

Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length



1. Q: What type waterproof connector do you have?

A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.


2.Q:Is the sample avaliable and free?

A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.


3.Q: Can you assured the quality?

A: Yes, weve gained the CE, RoHS, ip65-ip68, UL certification. And weve have strict QC team, all products will be tested before delivery.


4.Q: Whats the terms of payment?

A: We can accept T/T, LC, Paypal and Western Union


5.Q: Whats the delivery time?

A: It depends on the quantity, as usual it will takes 3-5 for small quantity.





Product description
Product name M23 Connector
Product type straight angle,right angle,t-type three way waterproof plugs,avitation plugs,etc.
Material all materials are compliant with RoHS
MOQ small quantity can be accepted
Product length can be customized
Color can be customized

Fast connection of optoelectronic technology products,outdoor light strips,urban lighting projects,solar light srings,lighting appliances,electromechanical equipment,equipment controllers,etc.

Payment term 30% deposit,70%before shipment,100%T/T,or by Paypal
Service OEM or ODM;we accept customization according to your requirement
Delivery time Product quantity ensure delivery time
Product display
