Product Details:
Payment & Shipping Terms:
|
Rated Voltage: | 110V-250V | Grounding: | Standard Grounding |
---|---|---|---|
Rated Current: | 2-10A | Color: | Black/White |
Material: | Nylon+PVC | Optional Cores: | 2-4pin |
Highlight: | screw terminal Waterproof Circular Connector,M10 Waterproof Circular Connector,10Amp Waterproof Circular Connector |

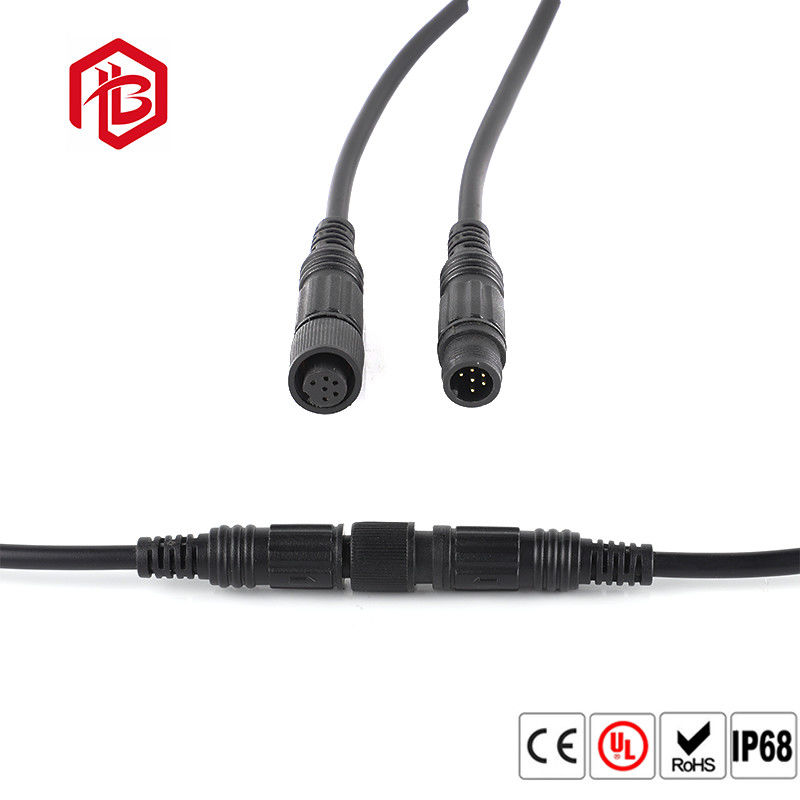

LED Lighting M10 Waterproof Circular Connector 10Amp IP68 Black Cable Connector
Detailed Product Description
Protection Level: | IP67 | Connecting Model: | Screw Locking |
---|---|---|---|
Pin: | 2 to 4pin | Current Rating: | 2-10A |
Model: | M10 | Voltage Rating: | 300V |
Details For M10waterproof cable connector
1. Color: black, yellow, blue available.
2. Push locking connection mode
3. Protection level: IP67
4. Connection method: soldering(welding),screw terminal
5. Assembly: assembly type, male and female connector.
6. Certification: UL,TUV,RoHS,CQC,CE
7. Warranty: 5 years
8. OEM accepted.
Operation Parameters | |
Voltage Rating | 300VAC max |
Current Rating | 2-10A |
Min Wire Size OD | 3.5m ~ 55mm |
Max Wire Size OD | 7.5MM |
Max.Cable Cross Section Area | 0.3mm2 ~ 1.0 |
Features:
Main characteristics
Applicaiton of Jnicon M19 Connectors
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
3Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
4Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
