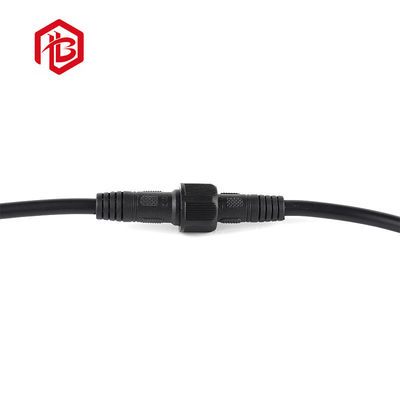

LED Stage Lighting PVC Black White Waterproof Cable Connector

LED Stage Lighting PVC Black White Waterproof Cable Connector
LED Stage Lighting PVC Black White Waterproof Cable Connector LED Stage Lighting PVC Black White Waterproof Cable Connector LED Stage Lighting PVC Black White Waterproof Cable Connector

Large Image :  LED Stage Lighting PVC Black White Waterproof Cable Connector

Product Details:

Place of Origin: China
Brand Name: Bett
Certification: CCC,CE,ROHS,IP
Model Number: M15

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Delivery Time: 3-7 Work days
Payment Terms: T/T, L/C,PayPal, Western Union
Supply Ability: 1000000sets/week
Contact Now
Detailed Product Description
Rated Voltage: 110V-240V Grounding: Standard Grounding
Rated Current: 2-8A Material: PVC
Type: Adapter Application: Power,Automotive,Audio & Video,LED Street Light
Highlight:

LED Lighting Waterproof Connector

,

M15 Waterproof cable connector

,

Standard Grounding Waterproof connectors

LED stage lighting Waterproof Male Female 2-4Pin PVC Black/White Connector



Detailed Product Description

Protection Level: IP68 Material: PVC
Pin: 2 to 4pin      Current Rating: 2-8A
Model: M15 Voltage Rating: 300V






The feature of 4 pin outdoor waterproof male female connector IP68

  • IP67/IP68 UL ROSH CE approved
  • OEM or ODM are available
  • Operate temperature: -20°C~+80°C
  • 2 pin, 3 pin, 4pins are avaiable
  • Free LOGO on overmold of connector is available
  • Cable length can customized
  • Shell material: PVC
  • Contact material : Brass with gold plated



Place of Origin Guangdong, China (Mainland)
Model Number M15 series
Application Power, LED, Electrical equipment
Protection Level IP68
Connector type Screw locking
Number of contact 2 pin/3 pin/4/pin
Current rating 8A
Voltage rating 300V
Contact diameter*number ∅1.5
Withstanding voltage 1500V
Cable gauge 24-16AWG
Flame-resistance rating UL94-V0
Warranty 3 years
Durability 3000 times plug/unplug




Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length


FAQ



1. Q: What type waterproof connector do you have?


A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.



2.Q:Is the sample avaliable and free?

A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.



3.Q: Can you assured the quality?

A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.



4.Q: What’s the terms of payment?

A: We can accept T/T, LC, Paypal and Western Union



5.Q: What’s the delivery time?

A: It depends on the quantity, as usual it will takes 3-5 for small quantity.







Product Description



Brand Bett
scope of application the LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens and so on
Types waterproof plug/waterproof connectors/waterproof connectors/Multi-split  waterproof plug/nylon waterproof plug/fabricated waterproof plug
Interface type AC/DC
Shape round/flat look
Process stamping/welding/injection molding
Feature waterproof
Contact material pure phosphor copper
Joint material PVC/PBT/PA66 / PC + ABS
Some conclusions 2-4core
Pin number 2-4 needle
line length any (mm)
Form socket, plug stamping or injection after welding
Rated voltage 24 V DC 0 (AC 110 V, 110 V)
Current rating 1-10A
Breakdown voltage  1500 V or higher (special require should be mentioned in advance)
Working temperature - 20 ~ +80 ° C
Protection grade IP65 - IP68 (other requirement. When ordering, please put forward)
Wire materials PVC, rubber, silicone, PE and so on, other according to customer requirements, routine for gb RVV sheath line
Certification can according to customer's requirements with CCC, VDE, UL, ROHS, SGS, etc all kinds of wire
Appearance  color black, white, transparent, etc
Normal product joint is made of PVC, wire type for CCC gb RVV sheath line, regular length for each 200 mm Can be designed and manufactured according to customer demand orientation, non-standard products
Some conclusions 2-4pin
Cable inside section 0.5 square (normal)
Cable length any long  can be customized for customer request, (20 cm) regular long male female each When ordering, please indicate some conclusions, insider cross-sectional area square number, color, line length, tail  decortication and wetting length (normal is 3 cm and 3 mm), the other orders are required to submit



Product display

LED Stage Lighting PVC Black White Waterproof Cable Connector 0LED Stage Lighting PVC Black White Waterproof Cable Connector 1
