Product Details:
Payment & Shipping Terms:
|
Gender: | Male To Female | Rated Current: | 4A |
---|---|---|---|
Connecting Mode: | Plug/unplug | Waterproof Level: | IP67 |
Keywords: | Power Cable Connector | Mating Style: | Screw |
Highlight: | Ip68 4A Waterproof Circular Connector,4A Waterproof Circular Connector Strips,M12 Ip68 Power Connector |

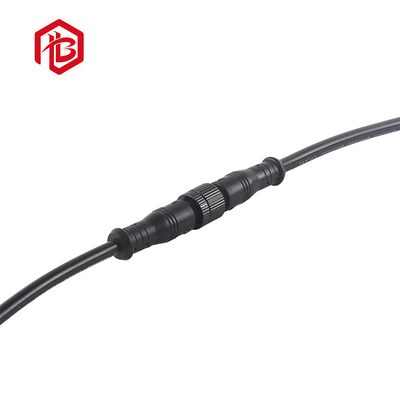

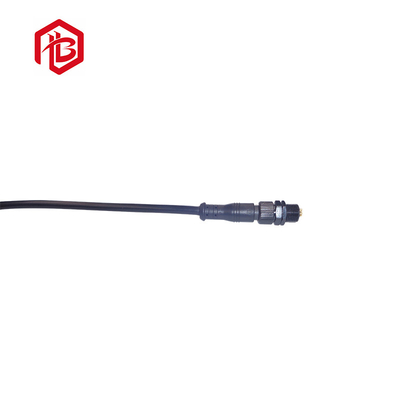

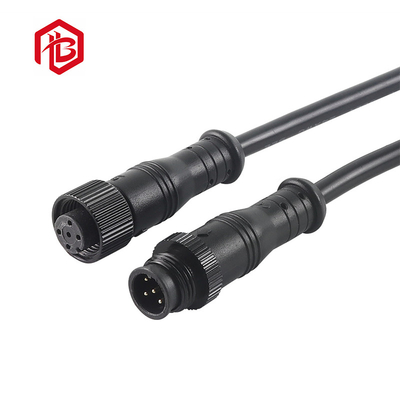

Led Strips M12 Ip68 4A Waterproof Circular Connector
Quick Detail Of Waterproof Circular Connector
1) Advanced structure: Self-locking
2) Mutiple pin:2,3,4,5,6,7,8,9 to 22 pins are optional
3) Contact pin: Screw terminal and soldering terminal available
4) Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board
5) Colours:Black,blue,white and yellow color supported
6) Cable length:Different cable length could be customized
Detailed Product Description
connecting mode: | 1/4 bayonet connecting type | Connecting Model: | Wire Connector |
---|---|---|---|
Application: | Power | color : | black,white ,red |
Cable specification: | M12 big head | Voltage Rating: | 250V |
Description of 2-5 Pole Connector
Operation Parameters | |
Contact resistance | <5mΩ |
Current Rating | 10 A max |
Cable specification | 2.5mm2 ~ 4mm2 /14~12AWG |
Max Wire Size OD | 6.5mm ~ 10mm |
Temperature rating | -40°C~80°C |
Main characteristics
Applicaiton of Bett M12 big head Connectors
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2.Q : What is the packing ?
AWell , we pack it in neutral brown cartons. Also your packing requirement is considered.
3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5.Q: How about your delivery time?
A: Generally, it will take 5 to 10 working days after receiving your advance payment. The specificdelivery time depends on the items and the quantity of your order.
