Customize M19 Thread Docking Waterproof Joint 16A Powered Waterproof Aviation Connector IP68

Customize M19 Thread Docking Waterproof Joint 16A Powered Waterproof Aviation Connector IP68
Customize M19 Thread Docking Waterproof Joint 16A Powered Waterproof Aviation Connector IP68 Customize M19 Thread Docking Waterproof Joint 16A Powered Waterproof Aviation Connector IP68 Customize M19 Thread Docking Waterproof Joint 16A Powered Waterproof Aviation Connector IP68

Large Image :  Customize M19 Thread Docking Waterproof Joint 16A Powered Waterproof Aviation Connector IP68

Product Details:

Place of Origin: China
Brand Name: Bett
Certification: UL,CCC,ROHS,CE,TUV
Model Number: M19

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Delivery Time: 3-7work days
Payment Terms: T/T, Western Union,Paypal, L/C
Supply Ability: 100000sets/week
Detailed Product Description
Protection Level: IP68/IP67 Material: Nylon
Warranty: 3 Years Certificate: UL,CCC,ROHS,CE,TUV
Connecting Model: Screw Locking Voltage Rating: 300V
High Light:

Waterproof Aviation Connector IP68

,

16A Waterproof Aviation Connector

,

M19 Thread Docking Waterproof Joint

  Customize M19 Thread Docking Waterproof Joint 16A Powered Waterproof Connector IP68 Assembly Aviation Plug

Detailed Product Description

Connecting Model: Screw Locking Contact Pin: 7 Pin Plug Socket
Color: Black Current Rating: 12A
Feature: High Durability Voltage Rating: 300V


7 Pin Plastic Waterproof Power Connector , M19 IP68 20A Waterproof Connector

M19 ideal electrical connectors is a good connection model, widely used in LED lighting, especially in outdoor application, even underwater.
Its the smallest Screw Lock design for waterproof application connection.Popular and Hot for sales.


  • 2PIN,3PIN,4PIN,5PIN available
  • M19 waterproof connector
  • waterproof connectors for irrigation
  • waterproof power connector
  • Sealed against dust and fluid (IP67)
  • ip67 circular connectors
  • waterproof landscape wire connectors
  • Vibration resistance,impact resistance,stretching resistance




Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone



Customize M19 Thread Docking Waterproof Joint 16A Powered Waterproof Aviation Connector IP68 0


Features:

  • Rated current: 20A/10rms.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved

Applicaiton of Bett M19 Connectors

  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


FAQ


1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.

3.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.






Tips:

1. Proofing: Customers provide samples or provide specifications, and we will make samples according to your samples for confirmation.
2. Production: Our sample production - the customer confirms that the sample is passed - the customer places an order - our company arranges production
3. Delivery: The normal delivery time is 5 to 10 days as agreed by both parties.
4. After-sales: If there is any quality or any other problem with the product, please give us feedback in time, and we will deal with it in time and serve you sincerely.
5. All products are customized according to customer requirements, quality assurance, samples are welcome to be customized.

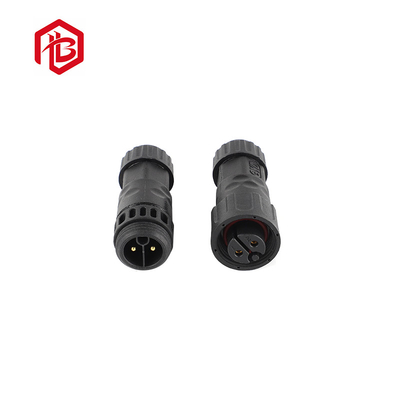

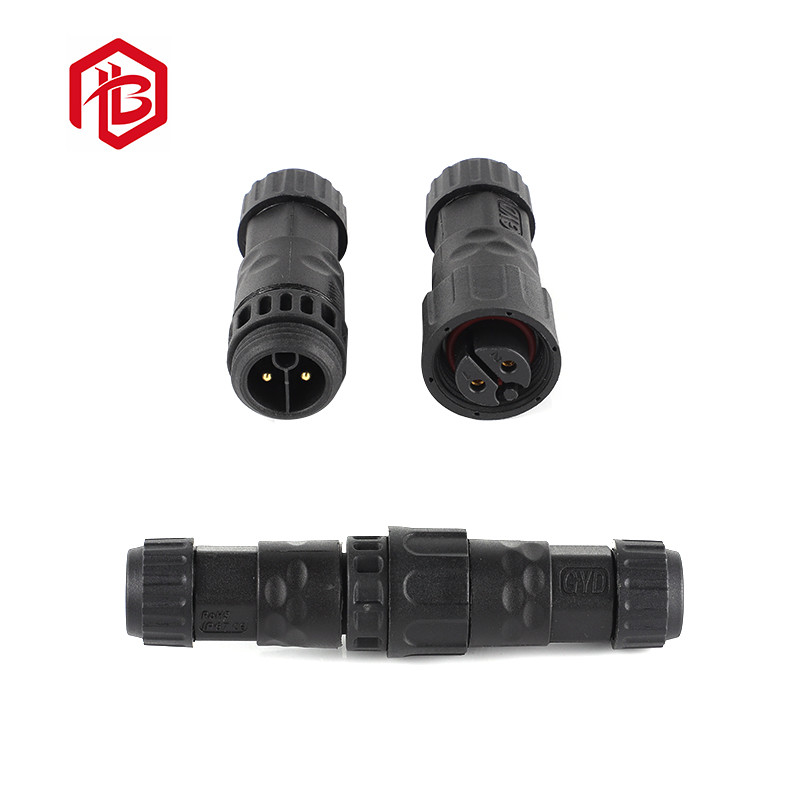

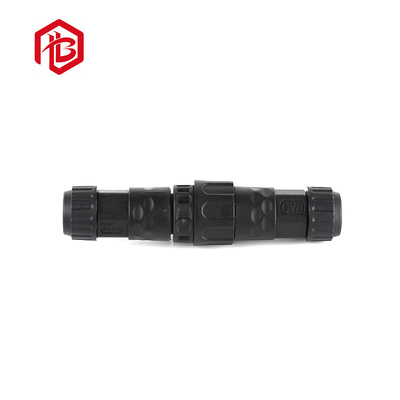

Product Display

Customize M19 Thread Docking Waterproof Joint 16A Powered Waterproof Aviation Connector IP68 1Customize M19 Thread Docking Waterproof Joint 16A Powered Waterproof Aviation Connector IP68 2Customize M19 Thread Docking Waterproof Joint 16A Powered Waterproof Aviation Connector IP68 3Customize M19 Thread Docking Waterproof Joint 16A Powered Waterproof Aviation Connector IP68 4Customize M19 Thread Docking Waterproof Joint 16A Powered Waterproof Aviation Connector IP68 5Customize M19 Thread Docking Waterproof Joint 16A Powered Waterproof Aviation Connector IP68 6
