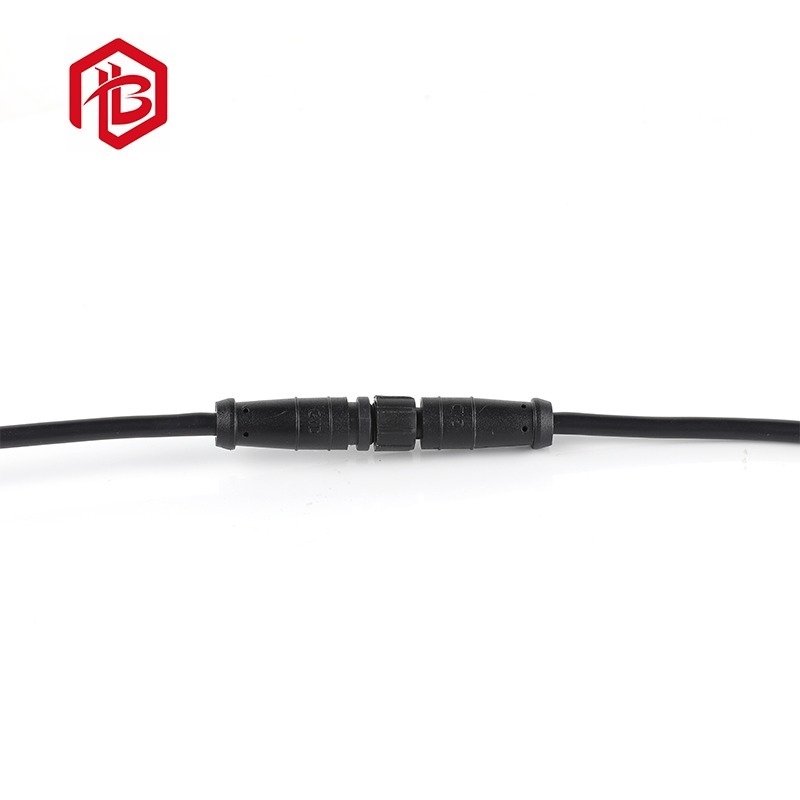

IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug

IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug
IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug

Large Image :  IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug

Product Details:

Place of Origin: Guangdong, China
Brand Name: Bett
Model Number: M8

Payment & Shipping Terms:

Minimum Order Quantity: 100 pieces
Price: $0.50-0.86/pieces
Contact Now
Detailed Product Description
Shape: ROUND Rated Current: 1-50A
Contact Material: Metal IP Level: Ip68
Type: Waterproof Connector Application: LED Light, Automotive, Wire Connections, Aerospace, Data Communication, Solar Power System, Electrical, Other
Gender: MALE/FEMALE Housing Material: Nylon
Product Name: M8 Waterproof Connector Certificate: CE/UL/IS09001/RoHS/CCC/IP
Pin: 2-12pin MOQ: 100 Pcs
Temperature Range: -20~+80 Degrees Feature: Multi-purpose
Samples: Paid Samples Delivery Time: 10-15 Days
Waterproof Level: IP67/IP68 Waterproof Grade Shell Material: PVC/Nylon/PVC+Nylon
Highlight:

IP68 waterproof M8 connector

,

12 pin nylon plug connector

,

50A waterproof circular connector

Product descriptions from the supplier

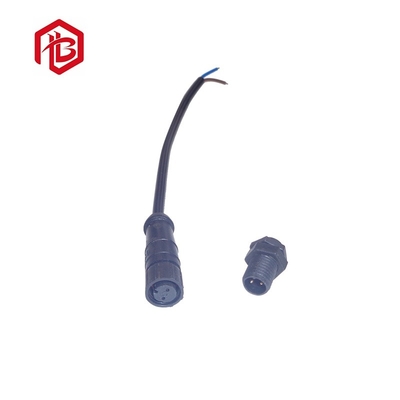

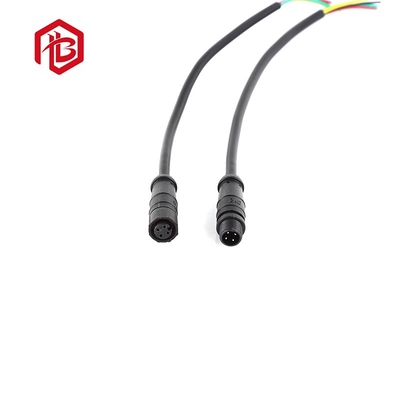

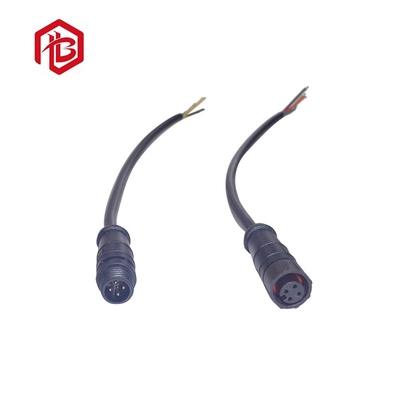

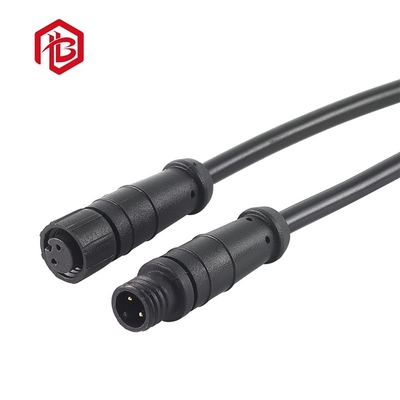

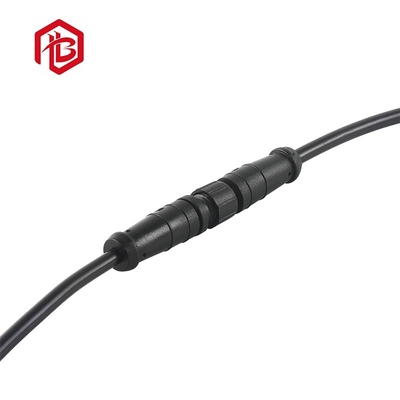

IP68 M8  2/3/4/5 pin plug

IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug 0

Product Description

 IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug 1

 Brand  Bett
 scope of application  the LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens and so on
 Types  waterproof plug/waterproof connectors/waterproof connectors/Multi-split  waterproof plug/nylon waterproof plug/fabricated waterproof plug
 Interface type  AC/DC
 Shape  round/flat look
 Process  stamping/welding/injection molding
 Feature  waterproof
 Contact material  pure phosphor copper
 Joint material  PVC/PBT/PA66 / PC + ABS
 Some conclusions  2-12 core
 Pin number  2-12 needle
 line length  any (mm)
 Form  socket, plug stamping or injection after welding
 Rated voltage  24 V DC 0 (AC 110 V, 110 V)
 Current rating  1-50A
 Breakdown voltage  1500 V or higher (special require should be mentioned in advance)
 Working temperature  - 40 ~ 105 ° C
 Protection grade  IP65 - IP68 (other requirement. When ordering, please put forward)
 Wire materials  PVC, rubber, silicone, PE and so on, other according to customer requirements, routine for gb RVV sheath line
 Certification  can according to customer's requirements with CCC, VDE, UL, ROHS, SGS, etc all kinds of wire
 Appearance  color  black, white, transparent, etc
 Normal product  joint is made of PVC, wire type for CCC gb RVV sheath line, regular length for each 200 mm Can be designed and manufactured according to customer demand orientation, non-standard products
 Some conclusions  2 core
 Cable inside section  0.75 square (normal)
 Cable length  any long  can be customized for customer request, (20 cm) regular long male female each When ordering, please indicate some conclusions, insider cross-sectional area square number, color, line length, tail  decortication and wetting length (normal is 3 cm and 3 mm), the other orders are required to submit

IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug 2

IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug 3IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug 4IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug 5

IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug 6

Company Information

 IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug 7IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug 8IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug 9

Packaging & Shipping

 IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug 10IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug 11

FAQ



1.Q:Is the sample avaliable and free?

A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.



2.Q: Can you assured the quality?

A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.



3.Q: What’s the terms of payment?

A: We can accept T/T, LC, Paypal and Western Union



4.Q: What’s the delivery time?

A: It depends on the quantity, as usual it will takes 3-5 for small quantity.

Our Services

 IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug 12IP68 M8 Waterproof Connector 2-12 Pin 1-50A Nylon Plug 13

Tag:

LED Light Waterproof Circular Connector,

Male Female Waterproof Circular Connector,

20A Waterproof Circular Connector
