IP68 Waterproof Flat Plug Connector 2-12 Pin 1-50A

Name: IP68 Waterproof Flat Plug Connector 2-12 Pin 1-50A
Brand: Shenzhen Bett Electronic Co., Ltd.
SKU: Little flat connector
Price: 2.10 USD
Availability: InStock

Brand Name:	Bett
Model Number:	Little flat connector
MOQ:	100

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Shape:

ROUND, Flat

Rated Current:

1-50A

Contact Material:

Metal

IP Level:

Ip68

Gender:

MALE/FEMALE

Housing Material:

Nylon, PVC

Pin:

2-12pin

Temperature Range:

-20~+80 Degrees

Shell Material:

PVC Cable Plastic

Waterproof Level:

IP65 Waterproof Grade

Rated Voltage:

24 V DC, AC 110 V

Breakdown Voltage:

1500 V Or Higher

Working Temperature:

-40~105 °C

Wire Materials:

PVC, Rubber, Silicone, PE

Cable Section:

0.75 Square

Highlight:

IP68 waterproof flat plug connector

2-12 pin circular connector

50A waterproof electrical connector

Product Description

Shenzhen Bett Electronic Waterproof Plug for Household Energy Storage

High Quality Little Flat Connector Premium Connectors

Product Specifications

Attribute	Value
Shape	ROUND, flat
Rated Current	1-50A
Contact Material	Metal
IP level	IP68
Type	Waterproof flat plugs
Application	LED Light, Automotive, wire connections, Aerospace, solar power system, electrical, Other
Gender	MALE/FEMALE
Housing Material	nylon, PVC
Product name	Little waterproof flat plugs
Certificate	CE/UL/ISO9001/RoHS/CCC/IP
Pin	2-12pin
MOQ	100 Pcs
Temperature Range	-20~+80 Degrees
Feature	Durable, Long Life, Easy Installation
Shell Material	PVC Cable Plastic
Delivery Time	10-15 Days
Waterproof Level	IP65 Waterproof Grade
Samples	Paid Samples

Product Description

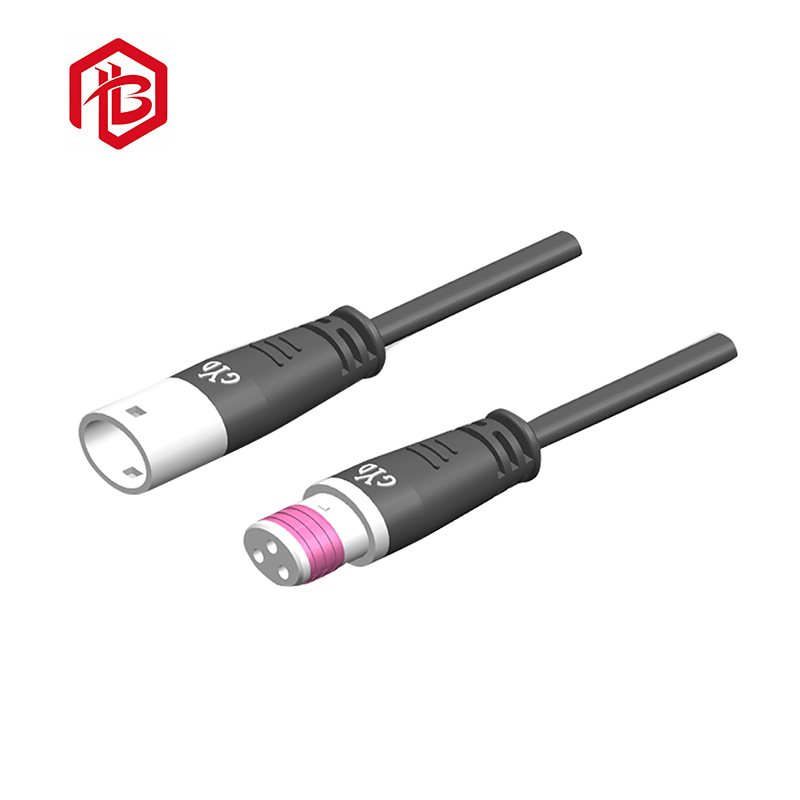

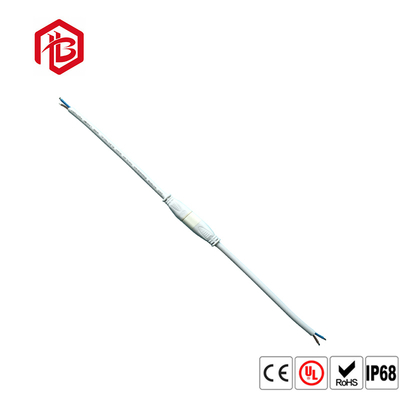

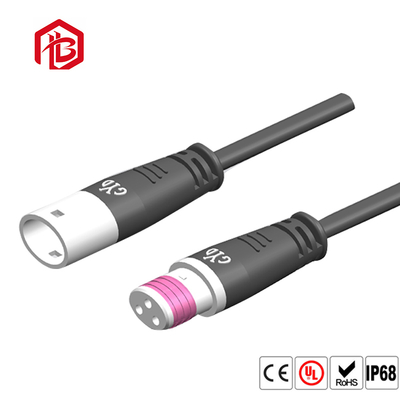

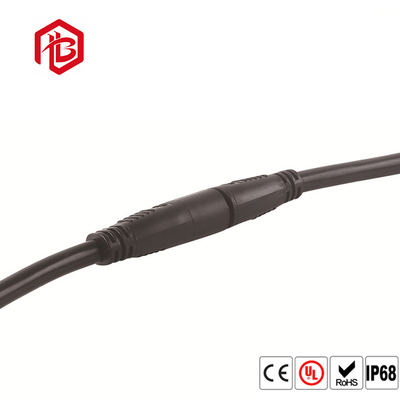

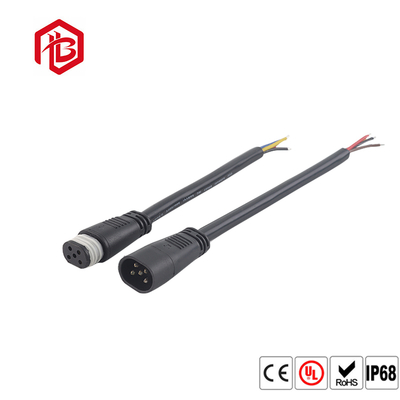

IP68 Little Flat Plugs Connector (2 pin, 3 pin, 4 pin plug)

Technical Specifications

Brand: Bett
Applications: LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens
Types: Waterproof plug/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug
Interface type: AC/DC
Shape: Round/flat
Process: Stamping/welding/injection molding
Contact material: Pure phosphor copper
Joint material: PVC/PBT/PA66/PC + ABS
Pin number: 2-12 needle
Rated voltage: 24V DC (AC 110V available)
Current rating: 1-50A
Breakdown voltage: 1500V or higher (special requirements available)
Working temperature: -40~105°C
Protection grade: IP65-IP68 (customizable)
Wire materials: PVC, rubber, silicone, PE (customizable)
Certification: CCC, VDE, UL, ROHS, SGS available
Appearance color: Black, white, transparent, etc.
Cable inside section: 0.75 square (standard)
Customization: Available for non-standard products

Frequently Asked Questions

Q: Is the sample available and free?

A: Samples are available, but they should be paid in advance. The cost of sample will be refunded after further order.

Q: Can you assure the quality?

A: Yes, we've gained the CE, RoHS, IP65-IP68, UL certification. We have a strict QC team, and all products are tested before delivery.

Q: What's the terms of payment?

A: We accept T/T, LC, Paypal and Western Union.

Q: What's the delivery time?

A: It depends on the quantity, typically 3-5 days for small quantities.
