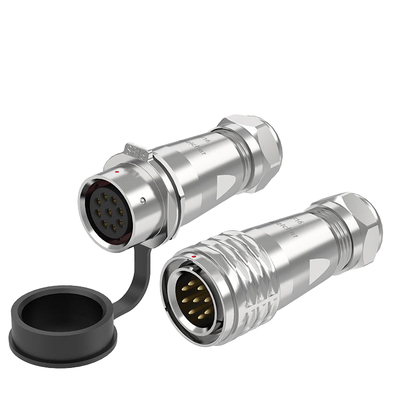

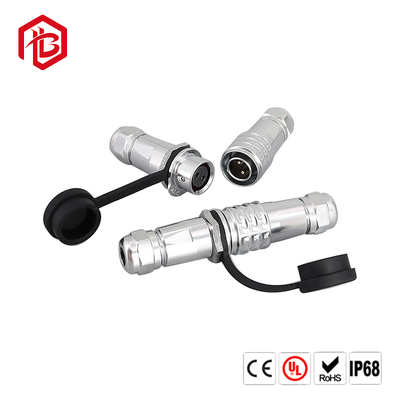

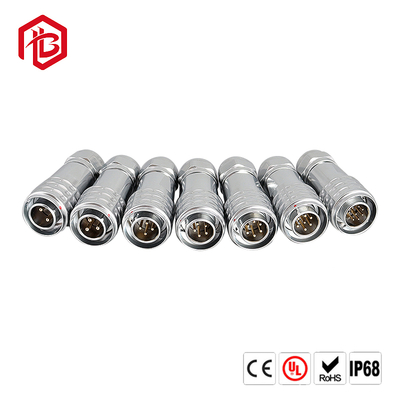

SF16 2/3/4/5/7/9Pins Push-Pull Self-Locking Circular Connector Waterproof Male/Female Aviation Plug

Name: SF16 2/3/4/5/7/9Pins Push-Pull Self-Locking Circular Connector Waterproof Male/Female Aviation Plug
Brand: Shenzhen Bett Electronic Co., Ltd.
SKU: IP68
Price: 3 USD
Availability: InStock

Brand Name:	BETT
Model Number:	IP68
MOQ:	50sets
Price:	3$
Delivery Time:	7Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE UL

Supply Ability:

50sets

Highlight:

waterproof circular aviation plug

self-locking circular connector

push-pull waterproof connector

Product Description

Product Specification

参数	2 芯	3 芯	4 芯	5 芯	6 芯	7 芯	8 芯
芯数(Contacts numbers)	2	3	4	5	6	7	8
额定电压(Voltage rating)	300V	300V	110V	60V	60V	60V	60V
额定电流(Current rating)	12A	8A	4A	3A	2A	2A	2A
线材匹配(Cable-OD)	≤1.5mm²	≤1.0mm²	≤0.5mm²	≤0.3mm²	≤0.2mm²	≤0.2mm²	≤0.2mm²
线材外径(Cable OD)	—	—	—	5mm—12mm	—	—	—
可插拔次数	—	—	—	3000 mating cycles	—	—	—
工作温度(Operating rating)	—	—	—	-40°C - +105°C	—	—	—
防水等级(Waterproof level)	—	—	—	ip68	—	—	—
