M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications

M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications

Brand Name:	GYD/BETT
Model Number:	M14
MOQ:	100sets
Price:	USD 1~3/set
Delivery Time:	5~8work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UL/CE/Rhos

Packaging Details:

package 50*25*30cm

Supply Ability:

100sets 10days

Highlight:

M14 waterproof panel mount connector

IP68 waterproof circular connector

2pin male female socket plug

Product Description

M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications

Product Specifications

Model number: BETT-M14-15003F1051

Connector Body: Nylon(PA 66)+GF UL94V-0 1/16"

Sealing: Silica Gel

Contact: Brass with gold plated

Mating style: Thread

Temperature Rating: -40°C~+105°C

Current rating: 15A

Voltage rating: 300V

Waterproof Rating: IP68

Contact resistance: <=10mΩ

Insulation resistance: 1000MΩ at DC500V

Breakdown voltage: 1.5KV/1 minute

Pins range: 2 to 10 and 3+4/2+5 pin

Cable Range: 3.5-7.5mm

Terminal attach wire: Solder

Technical Specifications by Pin Count

Pin Number	Voltage Rating	Current Rating	Contact Resistance	Insulation Resistance	IP Code	Cable Range	Breakdown Voltage
2	300V	15A	<=10mΩ	1000MΩ	IP68	<=7.5mm	1.5KV/1 minute
3	300V	15A	<=10mΩ	1000MΩ	IP68	<=7.5mm	1.5KV/1 minute
4	300V	15A	<=10mΩ	1000MΩ	IP68	<=7.5mm	1.5KV/1 minute
5	110V	5A	<=10mΩ	1000MΩ	IP68	<=7.5mm	1.5KV/1 minute
6	110V	5A	<=10mΩ	1000MΩ	IP68	<=7.5mm	1.5KV/1 minute
7	110V	5A	<=10mΩ	1000MΩ	IP68	<=7.5mm	1.5KV/1 minute
8	110V	5A	<=10mΩ	1000MΩ	IP68	<=7.5mm	1.5KV/1 minute
9	110V	5A	<=10mΩ	1000MΩ	IP68	<=7.5mm	1.5KV/1 minute
10	110V	5A	<=10mΩ	1000MΩ	IP68	<=7.5mm	1.5KV/1 minute
3+4	110V	15A+5A	<=10mΩ	1000MΩ	IP68	<=7.5mm	1.5KV/1 minute
2+5	110V	15A+5A	<=10mΩ	1000MΩ	IP68	<=7.5mm	1.5KV/1 minute

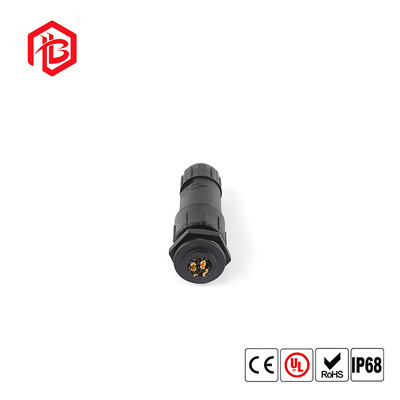

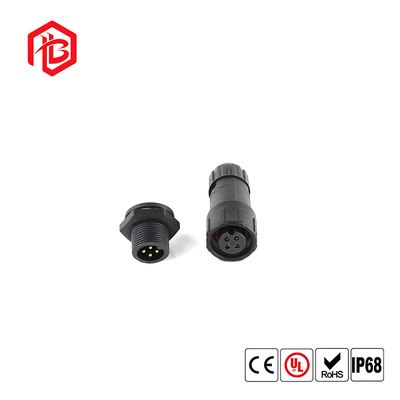

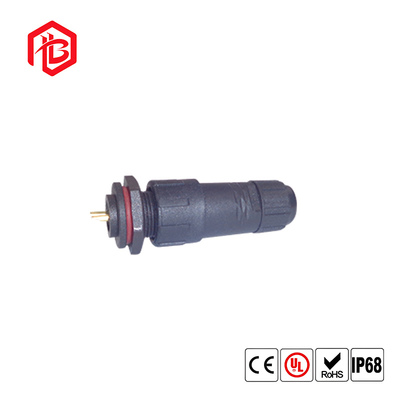

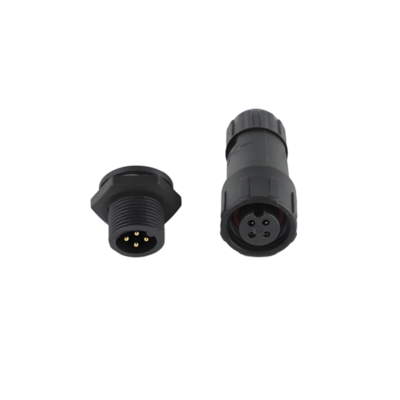

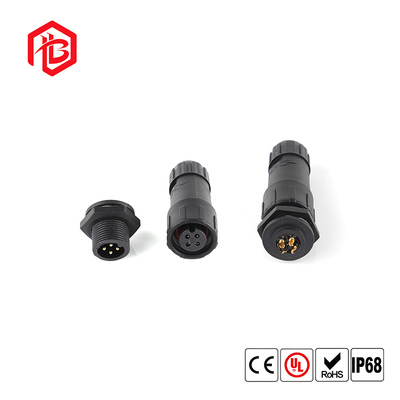

Product Images

Our Services

Company Information

Shenzhen Bett Electronic Co.,Ltd is a leader of a waterproof plug in China, we have ten years of factory experience, a professional research team, standardized production workshop.

We are specializing in a series 2-12 pins waterproof connector, including M12, aviation connector, panel mount connector, bulkhead connector, T/Y type connector(1 input 2-8 output connector), male to female connector, DC plug, assembled plug, etc.

Above items are applied in the LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens, the sensors, instruments, new energy industry, automotive electronics, industrial automation and so on.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Certifications

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory from China. OEM&ODM service is available, welcome to contact us.

Q: How can I get samples?

A: Please tell me your courier number and your detail address, you need to pay for freight charges by yourself, but the samples is free.

Q: Can I choose other packing but carton?

A: Please kindly contact us, your requirement is considered.

Q: How do I make sure I can get good products in your company?

A: Our factory has gained ISO9001,ISO14001, and we pay great attention to the quality of products, from material purchase to product delivery, in this whole process, we have several product testing, therefore, we are selected by many domestic and foreign engineering and enterprises.

Q: Can you give me some advise about how to buy a correct product?

A: It's my pleasure to help you first of all. If you are interested in our products, one of the most effective and time-saving ways is that you show your drawing to us what you want, if you are not sure. We can give you a solution promptly.

Q: The product I need is different from your product specification, but I like your company's product very much. What should I do?

A: Any requirement from customers will be considered since we stick customer service to the center. The products you looking for can be customized by our professional R&D team.

Q: What is your payment terms?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q: How to contact with you?

A: Please give me your email, it is the best and the most effective method to keep in touch with each other, and i can provide you with professional solutions in the shortest time.

Q: Can I visit your factory?

A: Welcome to visit our factory, it is the best way to know more about us, we believe that you will be more firm to choose us to be your supplier.
