M5 Industrial Circular Din Socket IP67 Waterproof 4 Pin Panel Mount Connector with 1A Rated Current and 30V Rated Voltage

M5 Industrial Circular Din Socket IP67 Waterproof 4 Pin Panel Mount Connector with 1A Rated Current and 30V Rated Voltage
M5 Industrial Circular Din Socket IP67 Waterproof 4 Pin Panel Mount Connector with 1A Rated Current and 30V Rated Voltage

Large Image :  M5 Industrial Circular Din Socket IP67 Waterproof 4 Pin Panel Mount Connector with 1A Rated Current and 30V Rated Voltage

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: 2
Contact Now
Detailed Product Description
Highlight:

M5 waterproof circular connector

,

IP67 panel mount connector

,

4 pin front-fastened socket

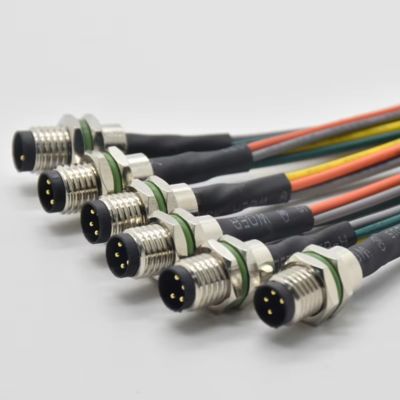

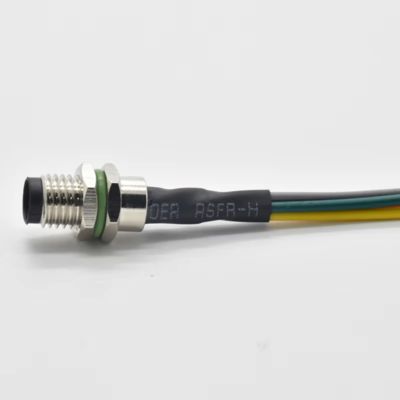

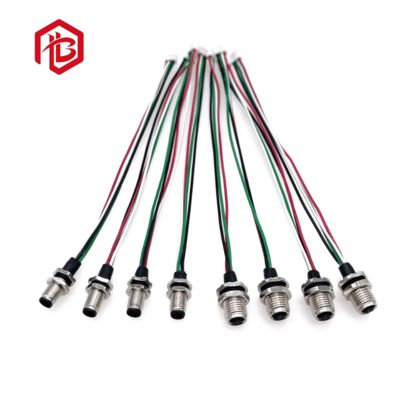

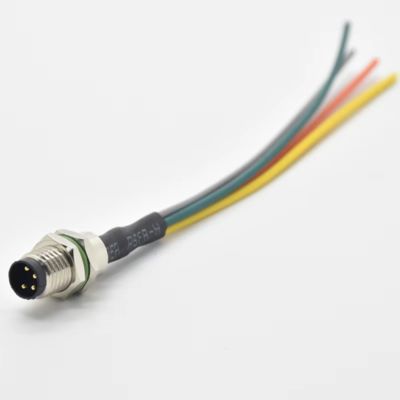

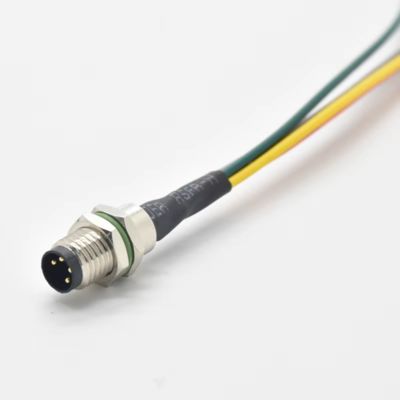

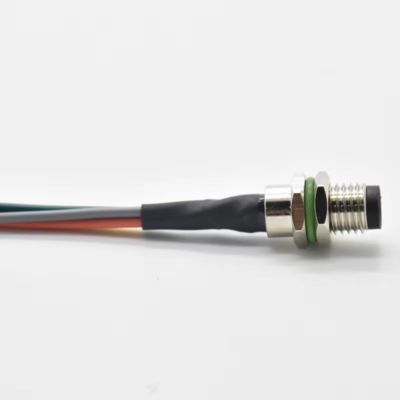

M5 Industrial Circular DIN Socket IP67 Waterproof A Code Front-Fastened Socket Male 4 Pin Panel Mount Connector with Wire
Product Specifications
Item M5 Industrial Circular DIN Socket IP67 Waterproof A Code Front-Fastened Socket Male 4 Pin Panel Mount Connector with Wire
Brand Name BETT
Contacts Number 4pin
Rated Current 1A
Rated Voltage 30V
Wire Gauge 26~30AWG
Mating Cycles >100 times
Contact Resistance ≤3 mΩ
Material of Contact Brass Gold Plated
Material of Housing Brass Nickel Plated
Material of Insulator PA66
Contact Plating Au
Operating Temperature -25℃~85℃
Salt Mist 48h
Connection Type Solder
M5 Industrial Circular Din Socket IP67 Waterproof 4 Pin Panel Mount Connector with 1A Rated Current and 30V Rated Voltage 0
Packaging & Shipping
  • Bundle up into bundles
  • Paired with cardboard boxes
  • Load into cardboard box
  • Loading
  • Transport
