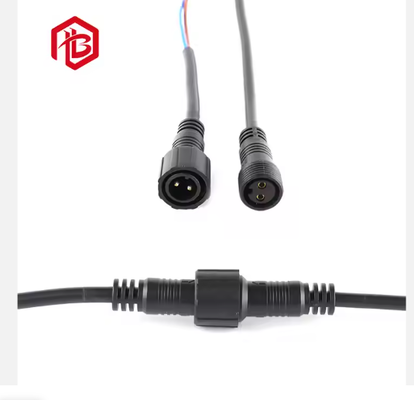

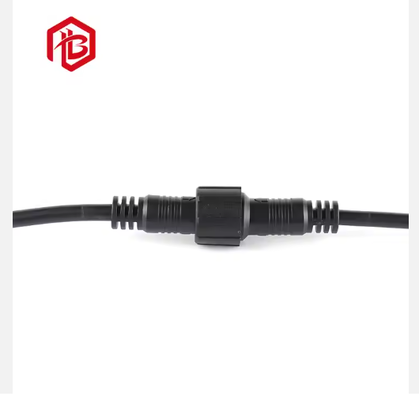

IP68 Rated 6A Waterproof Nylon Connector with Customizable Cable Length for LED Adaptor

Brand Name:	BETT
Model Number:	M18
MOQ:	50
Price:	2.7
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE UL RoHS

Product Description

Product Specification

Product introduction
Brand	Bett
scope of application	the LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens and so on
Types	waterproof plug/waterproof connectors/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug
Interface type(	AC/DC
Shape	round/flat look
Process	stamping/welding/injection molding
Feature	waterproof
Contact material	pure phosphor copper
Joint material	PVC/PBT/PA66 / PC + ABS
Some conclusions	2 - 12 core
Pin number	2 - 12 needle
line length	any long (mm)
Form	socket, plug stamping or injection after welding
Rated voltage	24 V DC 0 (AC 110 V, 110 V)
Current rating	1 - 50 A
Breakdown voltage	1500 V or higher (special require should be mentioned in advance)
Working temperature	- 40 ~ 105 °C
Protection grade	IP65, IP68 (other requirement. When ordering, please put forward)(IP65,IP68
Wire materials	PVC, rubber, silicone, PE and so on, other according to customer requirements, routine for gB RVV sheath line
Certification	can according to customer’s requirements with CCC, VDE, UL, ROHS, SGS, etc all kinds of wire
Appearance color	black, white, transparent, etc
Normal product	joint is made of PVC, wire type for CCC gb RVV sheath line, regular length for each 200 mm Can be designed and manufactured according to customer demand orientation, non - standard products
Some conclusions	2 core
Cable inside section	0.75 square (normal)
Cable length	any long can be customized for customer request, (20 cm) regular long male fe

Product Images

Product Line & Customization

Main Product Line: M5, M12, aviation connectors, panel mount connectors, specialized solutions
OEM/ODM Services: Custom development based on your drawings and samples
Customization Available: Design and manufacturing for specific pin counts, cable specifications, colors, and lengths

Ordering & Support

Minimum Order Quantity: Varies by item (1pc to 100pcs)

Free Samples: Available for low-cost products (customer pays freight)

Delivery Time
