M6 PVC Male/Female Plug with Copper Contact IP65 Waterproof for Aerospace and Power Applications

M6 PVC Male/Female Plug with Copper Contact IP65 Waterproof for Aerospace and Power Applications
M6 PVC Male/Female Plug with Copper Contact IP65 Waterproof for Aerospace and Power Applications M6 PVC Male/Female Plug with Copper Contact IP65 Waterproof for Aerospace and Power Applications M6 PVC Male/Female Plug with Copper Contact IP65 Waterproof for Aerospace and Power Applications M6 PVC Male/Female Plug with Copper Contact IP65 Waterproof for Aerospace and Power Applications M6 PVC Male/Female Plug with Copper Contact IP65 Waterproof for Aerospace and Power Applications M6 PVC Male/Female Plug with Copper Contact IP65 Waterproof for Aerospace and Power Applications M6 PVC Male/Female Plug with Copper Contact IP65 Waterproof for Aerospace and Power Applications M6 PVC Male/Female Plug with Copper Contact IP65 Waterproof for Aerospace and Power Applications M6 PVC Male/Female Plug with Copper Contact IP65 Waterproof for Aerospace and Power Applications M6 PVC Male/Female Plug with Copper Contact IP65 Waterproof for Aerospace and Power Applications

Large Image :  M6 PVC Male/Female Plug with Copper Contact IP65 Waterproof for Aerospace and Power Applications

Product Details:

Place of Origin: CHINA
Brand Name: BETT
Model Number: M6 PVC PLUG

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: $0.8
Delivery Time: 7 works days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Contact Now
Detailed Product Description
Cable Matching: <=0.5mm² Wire Outer Diameter: <=3.5mm
Number Of Insertions And Removals: 500 Mating Cycles Rated Current: 4A
Rated Voltage: 60V Number Of Cores: 2

M6 PVC Male/Female Plug with Copper Contact IP65 Waterproof
This M6 PVC waterproof male and female connector features pure copper contacts and IP65 waterproof rating, designed to withstand complex outdoor and industrial environments. Ideal for aerospace equipment, low-voltage power supply cables, LED equipment, and signal transmission wiring, it offers stable conductivity and long service life.
Core Specifications
Pin Count 2 pins
Rated Voltage 60V
Rated Current 4A
Matching Wire Cross-section ≤0.5mm²
Max Cable Outer Diameter ≤3.5mm
Mating Cycles 500 times
Operating Temperature -20℃ ~ +80℃
Key Features
  • IP65 waterproof rating for harsh environments
  • Pure copper contacts for stable conductivity
  • Durable PVC construction
  • 500 mating cycles for extended service life
  • Wide operating temperature range
Product Images

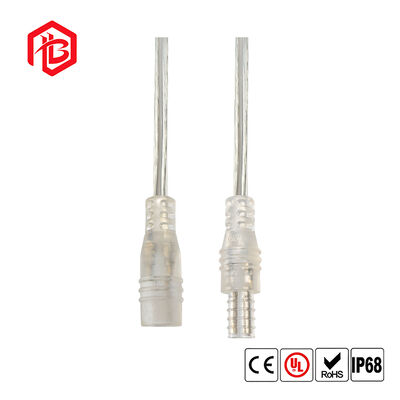

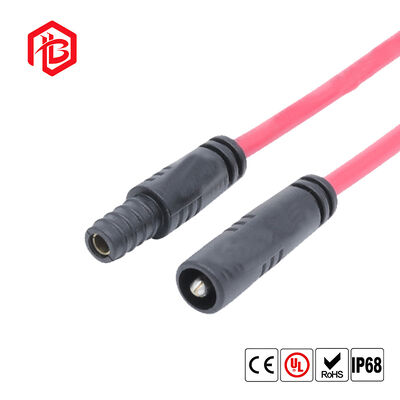

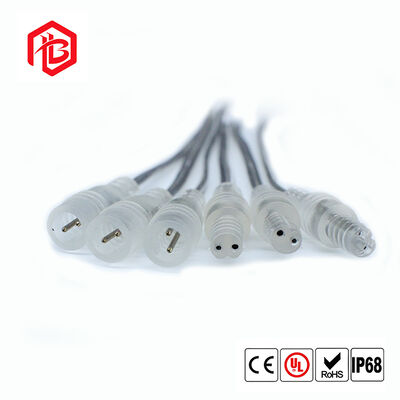

M6 PVC Male/Female Plug connector product view M6 PVC connector technical specifications diagram
Application Areas
M6 PVC connector use cases in aerospace and power applications
  • Aerospace equipment
  • Low-voltage power supply cables
  • LED equipment
  • Signal transmission wiring
  • Industrial automation systems
