Screw Terminal 10Amp M10 Waterproof Circular Connector

Brand Name:	Bett
Model Number:	M10
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	3-7 Work days
Payment Terms:	T/T,L/C,PayPal,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CCC,CE,ROHS,IP

Rated Voltage:

110V-250V

Grounding:

Standard Grounding

Rated Current:

2-10A

Color:

Black/White

Material:

Nylon+PVC

Optional Cores:

2-4pin

Packaging Details:

Standard export carton

Supply Ability:

100000sets/week

Highlight:

10Amp M10 waterproof connector

screw terminal circular connector

waterproof M10 electrical connector

Product Description

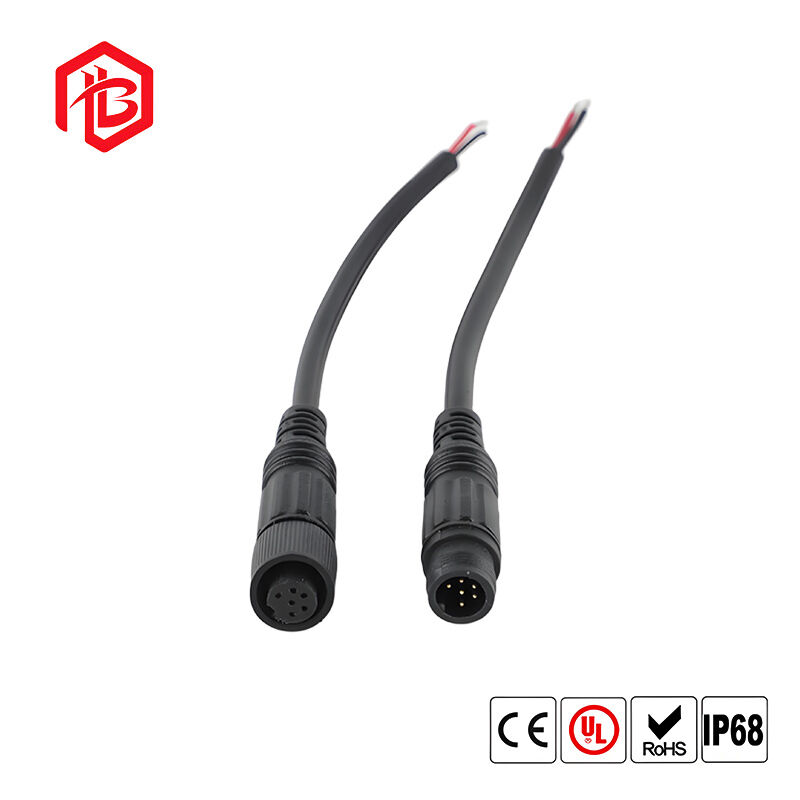

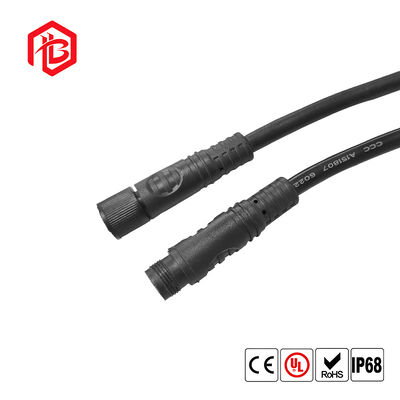

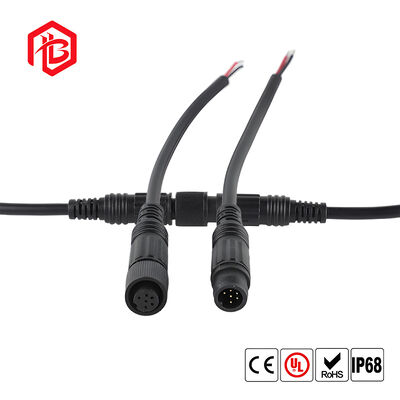

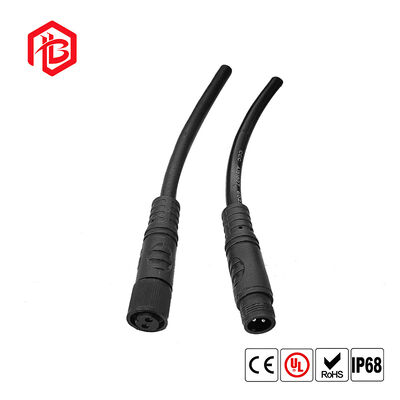

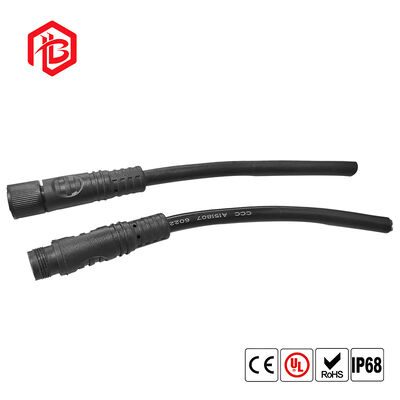

Screw Terminal 10Amp M10 Waterproof Circular Connector

LED Lighting M10 Waterproof Circular Connector 10Amp IP68 Black Cable Connector

Protection Level	IP67
Connecting Model	Screw Locking
Pin	2 to 4 pin
Current Rating	2-10A
Model	M10
Voltage Rating	300V

Product Details

Color: black, yellow, blue available
Push locking connection mode
Protection level: IP67
Connection method: soldering (welding), screw terminal
Assembly: assembly type, male and female connector
Certification: UL, TUV, RoHS, CQC, CE
Warranty: 5 years
OEM accepted

Operation Parameters

Voltage Rating	300VAC max
Current Rating	2-10A
Min Wire Size OD	3.5mm ~ 55mm
Max Wire Size OD	7.5mm
Max Cable Cross Section Area	0.3mm² ~ 1.0mm²

Key Features

Rated current: 2-10A
2-4 pin power supply
IP67/68 rating
Voltage rating: 300V
Cable Range: 3.5-7.5mm
UL, TUV, CB, CCC, CE, RoHS approved

Main Characteristics

Sealed against dust and fluid (IP68)
Vibration resistance, impact resistance, stretching resistance
Socket with cover
Cable assembly support
Customized cable size and length

Applications

Communications equipment
Product coding machines
Inventory product coding
Inkjet systems
Solar systems
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Frequently Asked Questions

Q: What type of waterproof connector do you have?

A: We have 17 series type connectors and manufacture more than 3000 types of waterproof connector cables. Most of our connectors are customized. We focus on LED waterproof connectors, assembly waterproof connectors, over-mold waterproof connectors, T waterproof connectors, and Y customized waterproof connectors.

Q: Is the sample available and free?

A: Samples are available but must be paid in advance. The sample cost will be refunded after further orders.

Q: Can you assure the quality?

A: Yes, we have obtained CE, RoHS, IP65-IP68, and UL certifications. We have a strict QC team, and all products are tested before delivery.

Q: What are the terms of payment?

A: We accept T/T, LC, PayPal, and Western Union.

Q: What is the delivery time?

A: It depends on the quantity. Typically, it takes 3-5 days for small quantities.

Product Display
