Product Details:
Payment & Shipping Terms:
|
| Application: | Automotive,LED | Material: | Nylon |
|---|---|---|---|
| Connector Type: | Adaptor | Rated Current: | 8-15A |
| Rated Voltage: | 250V | Mating Style: | Quick Connect Or Screw Lock |
| High Light: | 3000 Times waterproof Plugs And Sockets,CE Waterproof Plugs And Sockets,IP67 Waterproof Plugs And Sockets |
||

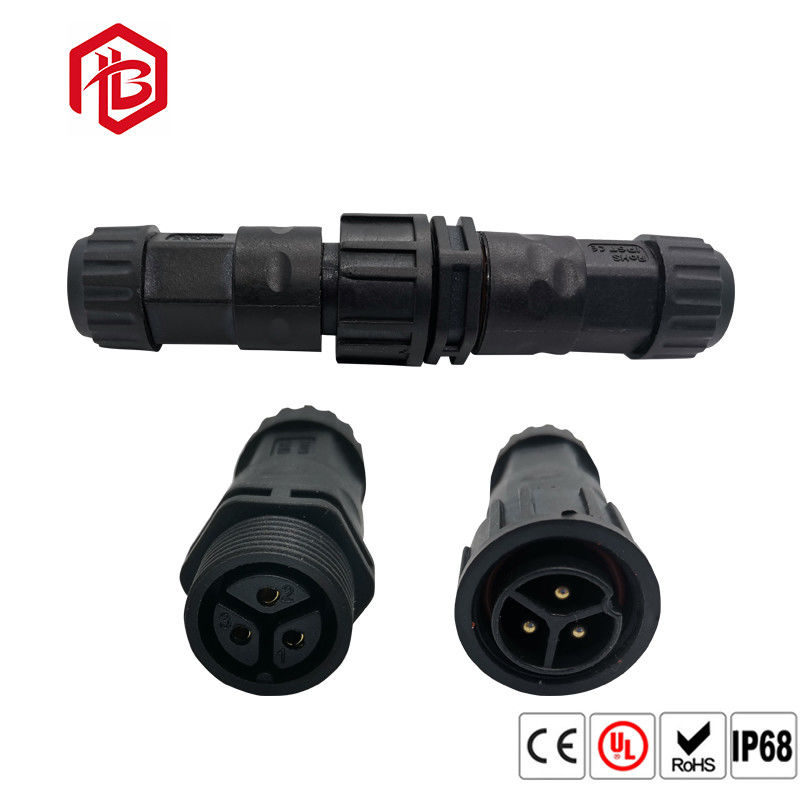

M19 Waterproof Plug And Socket Connector IP68 Assembled Electrical Connector
Detailed Product Description
| Protection Level: | IP68 | Connecting Model: | Screw Locking |
|---|---|---|---|
| Pin: | 2 to 4pin | Current Rating: | 20A |
| Model: | M19 | Voltage Rating: | 300V |
Product Descriptions
- Waterproof Plug Socket
- IP67 waterproof rating
- Lockable power cable shasis connector
- Apply in power-out (white)
- High refined copper contact
- Retardant material
Easy installation M19 cable connector wiring:
Easy connection, Convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
Good quality exterior cable plug:
With environmental protection material:high performance engineer plastic is good for environmental protection, please feel free to use the outdoor junction box.
Long service life exterior connector :
UV resistance makes it anti-aging,3 or 5 years life time when used in normal environment(but don't immerse waterproof electrical connectors in the the water for long time.
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 20A max |
| Min Wire Size OD | 3.5mm ~ 6.5mm |
| Max Wire Size OD | 6.5mm ~ 18mm |
| Max.Cable Cross Section Area | 0.3mm2 ~ 2.5mm2 |
Features:
Main characteristics
Applicaiton of Bett M19 Connectors
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
4.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
Product display
