Product Details:
Payment & Shipping Terms:
|
Application: | Automotive,LED | Material: | PVC+Metal |
---|---|---|---|
Rated Current: | 5-10A | Working Temperature: | -40℃-80℃ |
Voltage Rating: | 300V | Assembly Wire: | Soldering |
Highlight: | M12 Waterproof Circular Connector,Soldering Watertight Cable Connector,M12 Metal Waterproof Circular Connector |

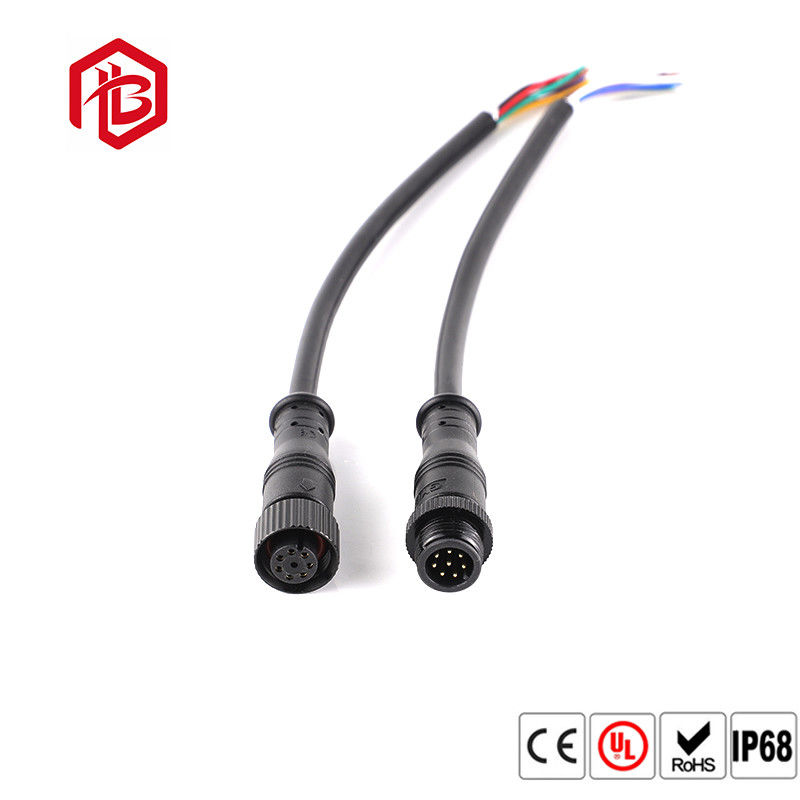

Bett watertight cable connector M12 metal connector outdoor round shape
Detailed Product Description
Protection Level: | IP68 | Connecting Model: | Screw Locking |
---|---|---|---|
Pin: | 2 to 8pin | Current Rating: | 5-15A |
Model: | M12 | Voltage Rating: | 300V |
Description of M12 connector
M12 waterproof power connector is the perfect solution to make your own waterproof connection underwater well. Thanks to its screw locking structure and installation finish perfectly.This M12 waterpoof circular connectors is widely used for LED lighting, Communications Application,product coding machines,Electric power equipment,Communications equipment and Heavy machinery.
This 5pin male female connectors has a waterproof rating of IP68.Soldering is NOT required to attach the two cables inside each main body. Once each side is connected, the wiring is fully protected from the elements.
Operation Parameters | |
Voltage Rating | 300VAC max |
Current Rating | 20A max |
Min Wire Size OD | 3.0mm ~ 6mm |
Max Wire Size OD | 6.0mm ~ 7.8mm |
Max.Cable Cross Section Area | 0.3mm2 ~ 1.5mm2 |
Features:
Main characteristics
Applicaiton of Bett M12 Connectors
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
