M12 Waterproof Connector
Created with Pixso. M12 Waterproof Metal Cable Connector Led Driver Power Supply New Energy Vehicle Docking Plug

M12 Waterproof Metal Cable Connector Led Driver Power Supply New Energy Vehicle Docking Plug

Brand Name: GYD-BETT
Model Number: M12
MOQ: Negotiable
Price: Negotiable
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union,Paypal, L/C
Detail Information
Place of Origin:
China
Certification:
UL,CCC,ROHS,CE
Material:
PVC+Metal
Application:
Automotive, LED, Etc.
Working Temperature:
-20℃-+80℃
Waterproof Level:
IP68
Cable OD:
3000mating Cycles
Packaging Details:
Standard export carton
Supply Ability:
100000 sets/ week
Highlight:

M12 Waterproof Metal Cable Connector

,

IP68 Waterproof Connector

,

8PIN Waterproof Male Female Connector

Product Description

M12 Waterproof Metal Cable Connector Led Driver Power Supply New Energy Vehicle Docking Plug

Detailed Product Description


Protection Level:IP68Connecting Model:Screw Locking
Pin:2 to 8pinCurrent Rating:2-8A
Model:M12Voltage Rating:300V


Description of M12 connector

M12 waterproof power connector is the perfect solution to make your own waterproof connection underwater well. Thanks to its screw locking structure and installation finish perfectly.This M12 waterpoof circular connectors is widely used for LED lighting, Communications Application,product coding machines,Electric power equipment,Communications equipment and Heavy machinery.
This 5pin male female connectors has a waterproof rating of IP68.Soldering is NOT required to attach the two cables inside each main body. Once each side is connected, the wiring is fully protected from the elements.


Operation Parameters
Voltage Rating300VAC max
Current Rating20A max
Min Wire Size OD3.0mm ~ 6mm
Max Wire Size OD6.0mm ~ 7.8mm
Max.Cable Cross Section Area0.3mm2 ~ 1.5mm2


M12 Waterproof Metal Cable Connector Led Driver Power Supply New Energy Vehicle Docking Plug

Features:​

  • Rated current: 5-15A/10rms.
  • 2, 3, 4, 5, 6,7,8 poles per connector are available
  • Degree of protection IP 67/IP68
  • Operating voltage 300V/110V/60V; Current range: 8A, 6A, 4A,3A,2A
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved
  • Ambient temperature: -20°C ~ + 80°C


Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length


Applicaiton of Bett M12 Connectors

  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery
  • LED display panel & outdoor LED lighting
  • Factory automation and process control


FAQ

1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.

3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.

4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union

5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.

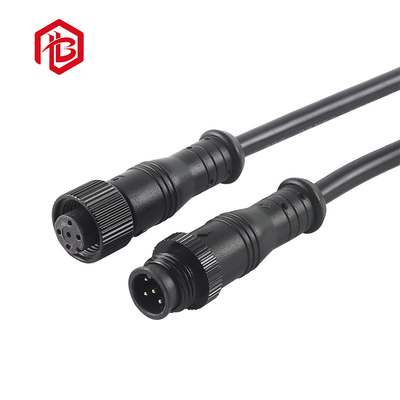

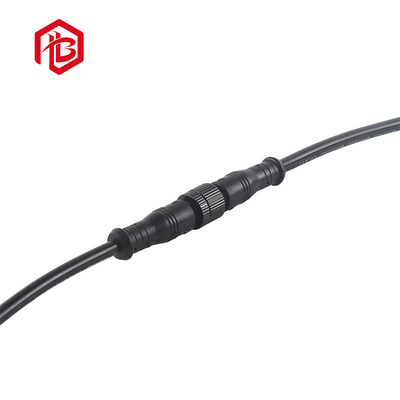

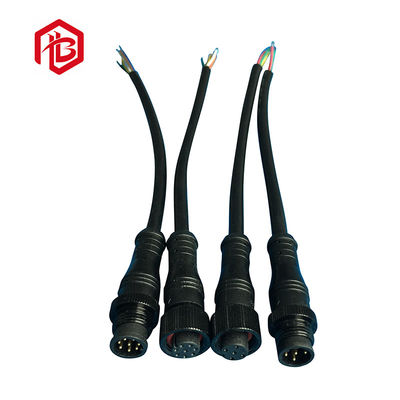

Product Display

M12 Waterproof Metal Cable Connector Led Driver Power Supply New Energy Vehicle Docking PlugM12 Waterproof Metal Cable Connector Led Driver Power Supply New Energy Vehicle Docking Plug
