M12 Waterproof Panel Mount Connector

M12 Waterproof Panel Mount Connector
M12 Waterproof Panel Mount Connector M12 Waterproof Panel Mount Connector M12 Waterproof Panel Mount Connector

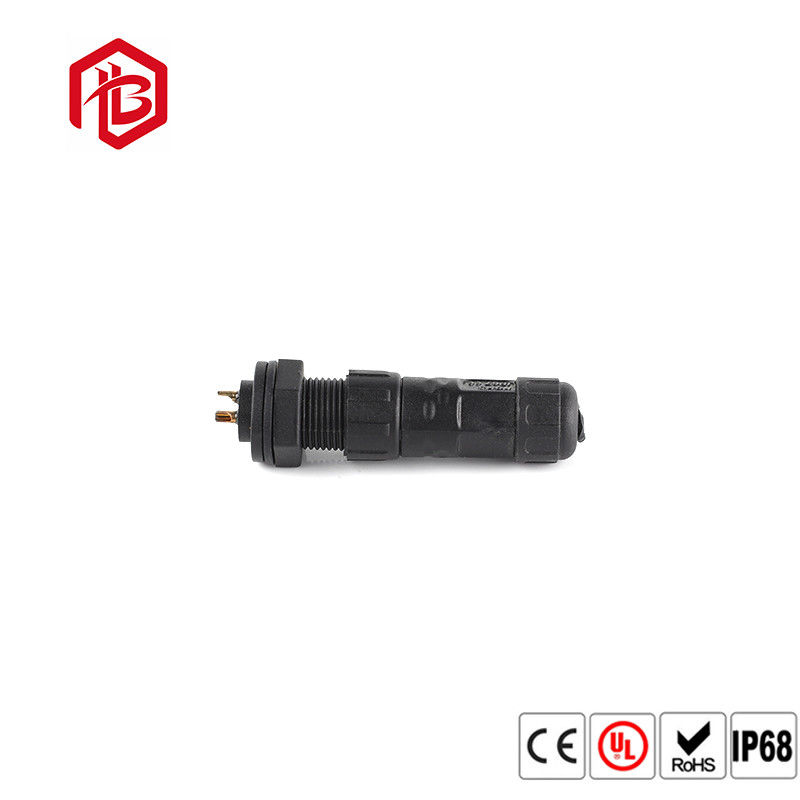

Large Image :  M12 Waterproof Panel Mount Connector

Product Details:

Place of Origin: China
Brand Name: Bett
Certification: UL CE CCC
Model Number: M12 panel mount

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 100000 sets/week
Detailed Product Description
Application: Power Material: Nylon,PVC
Color: Black Waterproof Level: IP67/68
Cable Length: Customized Pin: 2/3/4/5pin
High Light:

M12 Waterproof Connector


CE Waterproof cable Connectors


Nylon Multi Pin Connectors Waterproof

              M12 Waterproof Panel Mount Connector 2-5 pin circular industrial cable connector



Detailed Product Description


Protection Level: IP68/67 Connecting Model: solder plug
Pin: 2 to 5pin      Current Rating: 20A
Model: M12 Voltage Rating: 300V



Operation Parameters
Voltage Rating 300VAC max
Current Rating 20A max
gender male and female
Max Wire Size OD 3.5mm ~ 7mm
Max.Cable Cross Section Area 0.3mm2 ~ 0.75mm2



  • Rated current: 20A/10rms.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V

Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Customized cable size and length


Applicaiton of Bett M12 panel mount Connectors

  • Communications Application
  • product coding machines
  • inventory product coding
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery



1. Q: What type waterproof connector do you have?

A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.


2.Q:Is the sample avaliable and free?

A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.


3.Q: Can you assured the quality?

A: Yes, weve gained the CE, RoHS, ip65-ip68, UL certification. And weve have strict QC team, all products will be tested before delivery.


4.Q: Whats the terms of payment?

A: We can accept T/T, LC, Paypal and Western Union


5.Q: Whats the delivery time?

A: It depends on the quantity, as usual it will takes 3-5 for small quantity.

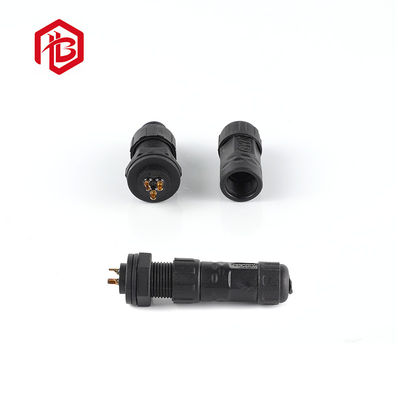

Product Display

M12 Waterproof Panel Mount Connector 0M12 Waterproof Panel Mount Connector 1M12 Waterproof Panel Mount Connector 2
