Industrial IP67 Waterproof Electrical M12 Circular Connector Male To Female Molding Cable 3 4 5 8 12 Pins

Industrial IP67 Waterproof Electrical M12 Circular Connector Male To Female Molding Cable 3 4 5 8 12 Pins
Industrial IP67 Waterproof Electrical M12 Circular Connector Male To Female Molding Cable 3 4 5 8 12 Pins

Large Image :  Industrial IP67 Waterproof Electrical M12 Circular Connector Male To Female Molding Cable 3 4 5 8 12 Pins

Product Details:

Place of Origin: China
Brand Name: Bett
Certification: UL,CCC,ROHS,CE,TUV
Model Number: M12

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union,Paypal, L/C
Supply Ability: 100000 sets/ week
Detailed Product Description
Material: Nylon/ PVC Connector Type: Waterproof Connector
Cable Length: Per Your Requirement Warranty: 2 Yeras
IP Rating: IP67 Connector Type: Underground Cable Connector
Model: M12 PIN: 2.3.4.5.6.7.8
Color: Black
High Light:

IP67 Waterproof Electrical Circular Sensor Connector

,

industrial circular connectors IP67

,

M12 Circular Connector Male To Female

M12 Male To Female Molding Cable 3 4 5 8 12 Pins Industrial IP67 Waterproof Electrical Circular Sensor Connector Custom

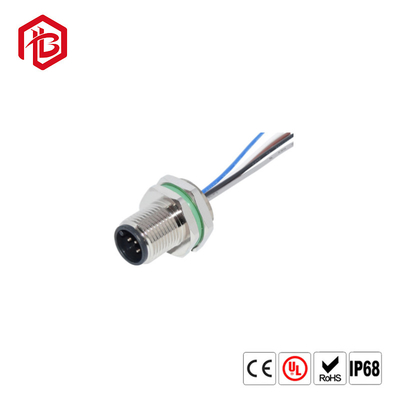

Industrial IP67 Waterproof Electrical M12 Circular Connector Male To Female Molding Cable 3 4 5 8 12 Pins 0

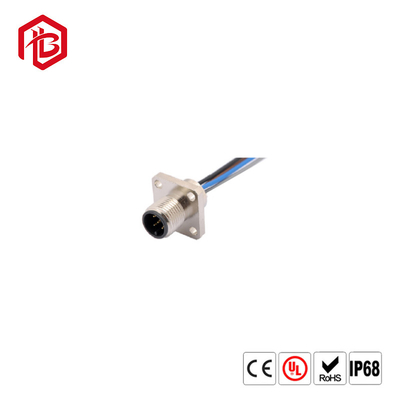

Industrial IP67 Waterproof Electrical M12 Circular Connector Male To Female Molding Cable 3 4 5 8 12 Pins 1
Product Description
Product Name
IP67 screw waterproof electrical panel mount socket M12 cable connector
Material of contact
CuZn(brass)
Contact plating
Au(gold)
Wire gouge
AWG26-AWG24
Material of contact body
PA
Material of housing
CuZn(brass nickel plated)
Standard
Industrial
Locking system
Screw
Drawing

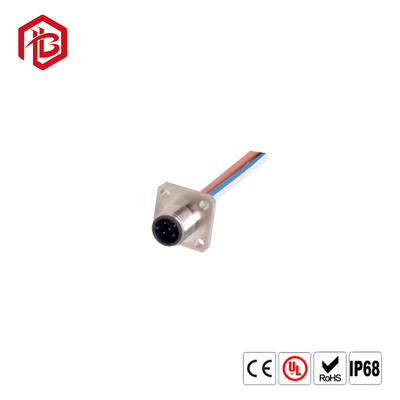

Industrial IP67 Waterproof Electrical M12 Circular Connector Male To Female Molding Cable 3 4 5 8 12 Pins 2

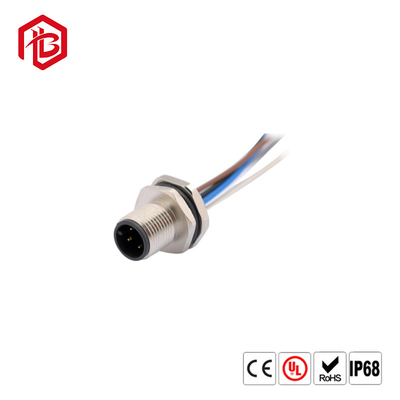

Industrial IP67 Waterproof Electrical M12 Circular Connector Male To Female Molding Cable 3 4 5 8 12 Pins 3


Description of 3~8 Pole Connector

Large Flat connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors,  it will be a perfet option. it is widely used in many application.


Operation Parameters
Voltage Rating 300VAC max
Current Rating 15A max
Min Wire Size OD 3.0mm ~ 6.5mm
Max Wire Size OD 6.5mm ~ 10mm
Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2


Features:

  • Rated current: 20A/10rms.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved

Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length


Applicaiton of Bett M19 Connectors

  • Communications Application
  • product coding machines
  • Electric power equipment
  • Communications equipment


FAQ

1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.

3.Q: Can you assured the quality?
A: Yes, weve gained the CE, RoHS, ip65-ip68, UL certification. And we have strict QC team, all products will be tested before delivery.

4.Q: Whats the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union

5.Q: Whats the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.





Product Display












Industrial IP67 Waterproof Electrical M12 Circular Connector Male To Female Molding Cable 3 4 5 8 12 Pins 4Industrial IP67 Waterproof Electrical M12 Circular Connector Male To Female Molding Cable 3 4 5 8 12 Pins 5
