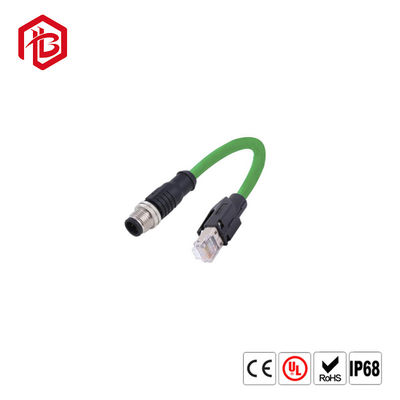

IP67/68 Waterproof Circular Connector M12 Cable Connector A/B/D Coding 3-17pin Plug

IP67/68 Waterproof Circular Connector M12 Cable Connector A/B/D Coding 3-17pin Plug
IP67/68 Waterproof Circular Connector M12 Cable Connector A/B/D Coding 3-17pin Plug

Large Image :  IP67/68 Waterproof Circular Connector M12 Cable Connector A/B/D Coding 3-17pin Plug

Product Details:

Place of Origin: China
Brand Name: Bett
Certification: UL,CCC,ROHS,CE,TUV
Model Number: M12

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union,Paypal, L/C
Supply Ability: 100000 sets/ week
Detailed Product Description
Material: Nylon/ PVC Connector Type: Waterproof Connector
Cable Length: Per Your Requirement Warranty: 2 Yeras
IP Rating: IP67 Connector Type: Underground Cable Connector
Model: M12 Color: Black
High Light:

Male Female M12 Cable Connector

,

Waterproof Circular M12 Cable Connector

,

Black M12 male and female connectors



IP67/68 waterproof circular connector M12 cable connector A/B/D coding 3-17pin plug



IP67/68 Waterproof Circular Connector M12 Cable Connector A/B/D Coding 3-17pin Plug 0





Product datasheet

M12 catagroy:
Molded type, custom pcb board to board connector
panel mounted or PCB mounted, plug pcb connector for industry
Field assembly Type, pcb power connector assembly
Standard:
IEC 61076-2-101

Gender:

Male or Female

Locking type:

Fix Screw or Quick-Lock

Molded mount type:

Straight or Angled

Panel Mount type:
Front Mount or Rear Mount
Cable Jacket:

PVC or PUR

Wire Insulation:

PVC
Cable Length:

Base on customers' request

Operate Temp:

-20℃ ~ +80℃

IP Rating:

IP67 or IP68

Contact Material :

Brass Gold Plated

Nut / Screw:

Brass Nickel Plated

Shielding:

Shielding or Non-shielding
Electronical Specs
IP67/68 Waterproof Circular Connector M12 Cable Connector A/B/D Coding 3-17pin Plug 1






Description of 3~5 Pole Connector

Large Flat connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors,  it will be a perfet option. it is widely used in many application.


Operation Parameters
Voltage Rating 300VAC max
Current Rating 15A max
Min Wire Size OD 3.0mm ~ 6.5mm
Max Wire Size OD 6.5mm ~ 10mm
Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2


Features:

  • Rated current: 20A/10rms.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved

Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length


Applicaiton of Bett M19 Connectors

  • Communications Application
  • product coding machines
  • Electric power equipment
  • Communications equipment

Sample Availability & Policy

Samples are to be sent to our customers for free on their request so long as they are willing to pay for the freight, or we can pay the freight for some old customers from our side as well, or the customer can pay the freight in advance and we can ship samples with our courier as well.

Guarantees/Warranties/Terms and Conditions

We provide product quality guarantee.
A 15-day quick delivery is assured.
Payment terms include T/T but it is subject to negotiation like L/C, PayPal, Western Union and more.

After Sales Service

Excellent service is offered through our network of offices and head office.
Please contact our marketing sales department either by phone or e-mail or if convenient, visit our office.
Aside from the friendly service, we offer the most competitive prices and flexible scheduling.






FAQ

1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.

3.Q: Can you assured the quality?
A: Yes, weve gained the CE, RoHS, ip65-ip68, UL certification. And we have strict QC team, all products will be tested before delivery.

4.Q: Whats the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union

5.Q: Whats the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.







Product Display




 IP67/68 Waterproof Circular Connector M12 Cable Connector A/B/D Coding 3-17pin Plug 2IP67/68 Waterproof Circular Connector M12 Cable Connector A/B/D Coding 3-17pin Plug 3
