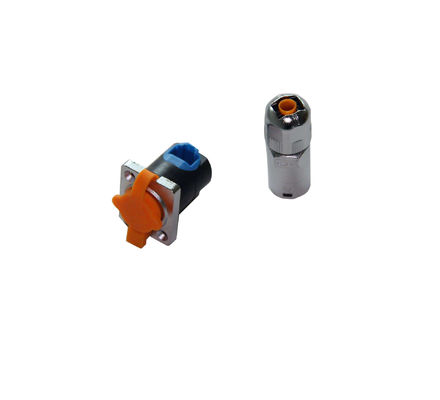

Waterproof 12V Multi Pin Metal Male Push Pull Connector RJ45 M12 Banana Plug Socket

Waterproof 12V Multi Pin Metal Male Push Pull Connector RJ45 M12 Banana Plug Socket
Waterproof 12V Multi Pin Metal Male Push Pull Connector RJ45 M12 Banana Plug Socket

Large Image :  Waterproof 12V Multi Pin Metal Male Push Pull Connector RJ45 M12 Banana Plug Socket

Product Details:

Place of Origin: China
Brand Name: Bett
Certification: UL,CCC,ROHS,CE,TUV
Model Number: M12

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union,Paypal, L/C
Supply Ability: 100000 sets/ week
Detailed Product Description
M12 RJ45 Material: Nylon/ PVC M12 RJ45 Connector Type: Waterproof Connector
M12 RJ45 Cable Length: Per Your Requirement M12 RJ45 Warranty: 2 Yeras
M12 RJ45 IP Rating: IP67 . IP68 M12 RJ45 Connector Type: Underground Cable Connector
M12 RJ45 Model: M12 M12 RJ45 Color: Black White
M12 RJ45 Surface Treatment: Gold Plating M12 RJ45 Production Capacity: 12000pieces/Week
High Light:

Banana Plug Socket M12 Waterproof

,

12V Multi Pin Push Pull Connector

,

12V M12 RJ45 Waterproof Connector

Waterproof 12V Multi Pin Metal Male Push Pull Connector RJ45

M12 Connector Banana Plug Socket







M12 RJ45 waterproof connector detatils:



Model NO. M12 waterproof connector
Surface Treatment Gold Plating
Warranty Two Years
Material PVC/Rubber/Nylon
Color Black White
Transport Package PE Bag/Carton or According Customize Packing
Trademark Bett
HS Code 8536909000
Contact Material Brass
Housing Copper Alloy
IP Rating IP65/IP66/IP67/IP68/IP69
Cable Length Per Your Requirement
Temperature Range -20~+85
Specification 55*30*30 / 38*28*20
Origin China
Production Capacity 12000pieces/Week





M12 waterproof connector

Material



Pin contant: CuZn
Socket contact: CuSn
Contact plating: Au
Cable Material: PVC/PUR



Electrical Performance



Rated voltage: 250V for 3/4 pin, 60V for 5/6pin, 30V for 8/12/17pin
Rated current: 4A for 3/4/5/6 pin, 2A for 8pin, 1.5A for 12/17pin
Insulation resistance: ≥100 MΩ
Contact resistance: Standard: IEC 61076-2-101







Mechanical Performance



Coupling method: threaded connection
Direction: Straight/Angled
Mechanical operation: >500 mating cycles



Environmental Performance



Temperature range: -25°C ~ + 85°C
Protection degree: IP67/IP68




M12 RJ45 waterproof connectorDescription of 3~5 Pole Connector

Large Flat connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors,  it will be a perfet option. it is widely used in many application.



Operation Parameters
Voltage Rating 300VAC max
Current Rating 15A max
Min Wire Size OD 3.0mm ~ 6.5mm
Max Wire Size OD 6.5mm ~ 10mm
Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2


M12 RJ45 waterproof connector Features:

  • Rated current: 20A/10rms.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved

M12 RJ45 waterproof connector Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length


M12 RJ45 waterproof connector Applicaiton of Bett M19 Connectors

  • Communications Application
  • product coding machines
  • Electric power equipment
  • Communications equipment
M12 RJ45 waterproof connector Packaging & Delivery



Packing



1.plastic
2.carton
3.as the requirement of per custom





Port



Shenzhen



Lead time


7-15 working days



M12 RJ45 waterproof connector FAQ

1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2. Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.

3. Q: Can you assured the quality?
A: Yes, weve gained the CE, RoHS, ip65-ip68, UL certification. And we have strict QC team, all products will be tested before delivery.

4. Q: Whats the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union

5. Q: Whats the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.






M12 RJ45 waterproof connectorProduct Display


 Waterproof 12V Multi Pin Metal Male Push Pull Connector RJ45 M12 Banana Plug Socket 0Waterproof 12V Multi Pin Metal Male Push Pull Connector RJ45 M12 Banana Plug Socket 1Waterproof 12V Multi Pin Metal Male Push Pull Connector RJ45 M12 Banana Plug Socket 2Waterproof 12V Multi Pin Metal Male Push Pull Connector RJ45 M12 Banana Plug Socket 3Waterproof 12V Multi Pin Metal Male Push Pull Connector RJ45 M12 Banana Plug Socket 4Waterproof 12V Multi Pin Metal Male Push Pull Connector RJ45 M12 Banana Plug Socket 5
