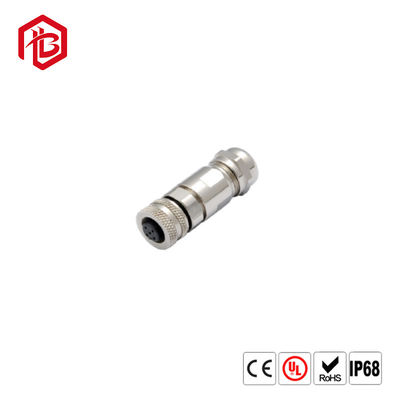

M12 X Coding Field Installable Assembly M12 Waterproof Connector

M12 X Coding Field Installable Assembly M12 Waterproof Connector
M12 X Coding Field Installable Assembly M12 Waterproof Connector

Large Image :  M12 X Coding Field Installable Assembly M12 Waterproof Connector

Product Details:

Place of Origin: China
Brand Name: Bett
Certification: UL，CCC，ROHS，CE，TUV
Model Number: M12

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union，Paypal, L/C
Supply Ability: 100000 sets/ week
Contact Now
Detailed Product Description
M12 Waterproof Connector Material: Nylon/ PVC M12 Waterproof Connector Connector Type: M12 Waterproof Connector
M12 Waterproof Connector Cable Length: Per Your Requirement M12 Waterproof Connector Warranty: 2 Yeras
M12 Waterproof Connector IP Rating: IP67 . IP68 M12 Waterproof Connector Connector Type: Underground Cable Connector
Model: M12 Waterproof Connector M12 Waterproof Connector Color: Black White
M12 Waterproof Connector Surface Treatment: Gold Plating M12 Waterproof Connector Production Capacity: 12000pieces/Week
Highlight:

M12 Waterproof Connector​ 5pin

,

Field Installable M12 Waterproof Connector

M12 X Coding Field Installable Assembly M12 Waterproof Connector​







M12 waterproof connector detatils:





Model NO. M12 waterproof connector
Surface Treatment Gold Plating
Warranty Two Years
Material PVC/Rubber/Nylon
Color Black White
Transport Package PE Bag/Carton or According Customize Packing
Trademark Bett
HS Code 8536909000
Contact Material Brass
Housing Copper Alloy
IP Rating IP65/IP66/IP67/IP68/IP69
Cable Length Per Your Requirement
Temperature Range -20~+85
Specification 55*30*30 / 38*28*20
Origin China
Production Capacity 12000pieces/Week



Characteristics of M12 waterproof connector Series

Number of contact 3.4.5.8.12.17
Locking system screw M12*1.0
Termination solder, moulded on cable, crimp or screw clamp
Wire guage in mm² 0.14/0.25/0.34/0.5 etc
0.14/0.25/0.34/0.5 etc 26/24/22/20 etc
Shell protection IP67/IP68
Mechanical operation >500 mating cycles
Upper temperature +85℃
Lower temperature -25℃



M12 waterproof connector Electrical Characteristics

Rated voltage 250V, 60V, 30V
Pollution degree III
Test voltage 500V±15V
Rated current(40℃) 4A, 1.5A
Contact resistance ≤10mΩ
insulation resistance ≥100MΩ



M12 waterproof connector Materials

Pin contact CuZn
Socket contact CuSn
Contact plating Au
Upper temperature PA66(UL 94V-0)
Female insent PA66(UL 94V-0)
Material of cable jacket PVC or PUR
Screw CuZn
Nut CuZn



M12 waterproof connector

Material



Pin contant: CuZn
Socket contact: CuSn
Contact plating: Au
Cable Material: PVC/PUR


Electrical Performance



Rated voltage: 250V for 3/4 pin, 60V for 5/6pin, 30V for 8/12/17pin
Rated current: 4A for 3/4/5/6 pin, 2A for 8pin, 1.5A for 12/17pin
Insulation resistance: ≥100 MΩ
Contact resistance: Standard: IEC 61076-2-101







Mechanical Performance



 Coupling method: threaded connection
Direction: Straight/Angled
Mechanical operation: >500 mating cycles



Environmental Performance



 Temperature range: -25°C ~ + 85°C
Protection degree: IP67/IP68






M12 waterproof connector Description of 3~5 Pole Connector

Large Flat connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors,  it will be a perfet option. it is widely used in many application.



Operation Parameters
Voltage Rating 300VAC max
Current Rating 15A max
Min Wire Size OD 3.0mm ~ 6.5mm
Max Wire Size OD 6.5mm ~ 10mm
Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2


M12 waterproof connector Features:​

  • Rated current: 20A/10rms.
  • 2-4PIN power supply, 5-9PIN signal is optional.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved

M12 waterproof connector Main characteristics

  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length


M12 waterproof connector Applicaiton of Bett M19 Connectors

  • Communications Application
  • product coding machines
  • Electric power equipment
  • Communications equipment
M12 waterproof connector Packaging & Delivery



Packing



1.plastic
2.carton
3.as the requirement of per custom





Port



 Shenzhen



Lead time


 7-15 working days



M12 waterproof connector FAQ

1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2. Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.

3. Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we have strict QC team, all products will be tested before delivery.

4. Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union

5. Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.






M12 waterproof connectorProduct Display

M12 X Coding Field Installable Assembly M12 Waterproof Connector 0M12 X Coding Field Installable Assembly M12 Waterproof Connector 1M12 X Coding Field Installable Assembly M12 Waterproof Connector 2M12 X Coding Field Installable Assembly M12 Waterproof Connector 3M12 X Coding Field Installable Assembly M12 Waterproof Connector 4M12 X Coding Field Installable Assembly M12 Waterproof Connector 5M12 X Coding Field Installable Assembly M12 Waterproof Connector 6M12 X Coding Field Installable Assembly M12 Waterproof Connector 7M12 X Coding Field Installable Assembly M12 Waterproof Connector 8
