Poles:3 4 poles
S type integrated waterproof connector
Coupling screw/nut: copper tin plated
Connection method: welding
M12 waterproof connector Applications:
● Sensors, actuators, encoders, motors, industrial cameras, ships and other equipment
● Factory automation process control
● Packaging label printing equipment
● Industrial equipment
● EMS circuit board assembly
● Industrial safety grating light curtain
● Equipment batteries, semiconductors
● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet,
● Ship electronics NMEA 2000, rail transit
● LED outdoor display, outdoor LED lighting
M12 waterproof connector Description of 3~5 Pole Connector
Large Flat connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors, it will be a perfet option. it is widely used in many application.
|Min Wire Size OD
||3.0mm ~ 6.5mm
|Max Wire Size OD
||6.5mm ~ 10mm
|Max.Cable Cross Section Area
||0.3mm2 ~ 2.5mm2
M12 waterproof connector Features:
- Rated current: 20A/10rms.
- 2-4PIN power supply, 5-9PIN signal is optional.
- IP67/68 rating
- Voltage rating: 300V
- Cable Range: 3~11mm
- UL, TUV, CB, CCC, CE, RoHS approved
M12 waterproof connector Main characteristics
- Sealed against dust and fluid (IP68)
- Vibration resistance,impact resistance,stretching resistance
- socket with cover
- Cable assembly support
- Customized cable size and length
M12 waterproof connector Applicaiton of Bett M19 Connectors
- Communications Application
- product coding machines
- Electric power equipment
- Communications equipment
M12 waterproof connector Packaging & Delivery
3.as the requirement of per custom
|7-15 working days
M12 waterproof connector FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2. Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
3. Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we have strict QC team, all products will be tested before delivery.
4. Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5. Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.

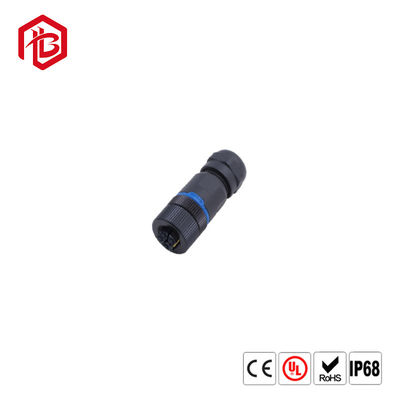

M12 waterproof connectorProduct Display
