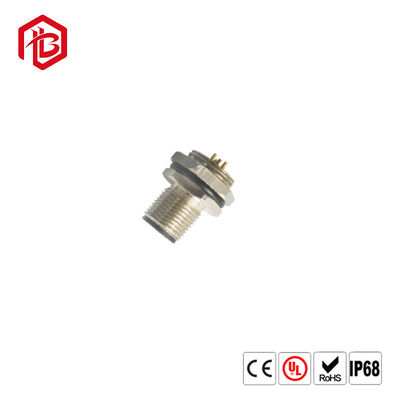

M12 X Code PCB Female Rear M12 Panel Mount Connector 8 Pin For Sign

M12 X Code PCB Female Rear M12 Panel Mount Connector 8 Pin For Sign
M12 X Code PCB Female Rear M12 Panel Mount Connector 8 Pin For Sign

Large Image :  M12 X Code PCB Female Rear M12 Panel Mount Connector 8 Pin For Sign

Product Details:

Place of Origin: China
Brand Name: Bett
Certification: CE, UL
Model Number: M12 Metal Adapter connector

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T, Western Union/ Paypal
Supply Ability: 100000 / week
Detailed Product Description
Model Number: M12 Adapter Material: Copper (gold-plated)
Application: Automotive Waterproof Grade: IP Rating
Rated Current: 4A Rated Voltage: 250V
High Light:

4A M12 Panel Mount Connector

,

250V M12 8 Pin Connector

,

PCB M12 8 Pin Female Connector

M12 X code PCB female rear M12 panel mount connector 8 pin for sign





Product description



Standard IEC 61076-2-101 / 104
Gender Male / Female
Number of Contacts 2 / 3 / 4 / 5 / 8 / 12 / 17 Pin
Coding A / B / C / D / K / L / X / S / T Code
Termination Soldering / PCB / Srew - Jo1nt
Cable length Base on customer's request
Contacts plating Gold plated, thickness 1 U"
Connection type Single ended cable / Double ended cable
Orientation Straight / Right Angle
Insert/ Housing NYLON66 + GF
Overmold / Shell Metal shell
Connector contacts Brass with gold plated
Rated current 4A: 3 / 4 / 5Pin 2A: 8 Pin 1.5A: 12 Pin
Rated Voltage 250V: 3 / 4 / 5 Pin 60V: 8 Pin 30V: 12Pin
Ambient temperature -40°C~ + 90°C
Coupling nut / screw Brass with nickel plated screw
Insulation resistance ≥100MΩ
Sealing Epoxy resin
Contacts resistance ≤5MΩ
Shielding Non-Shielded
IP rating IP67 IP68





Features



M12 Circular Connector is Designed for Washdown and Corrosive Environments, Primarily Used in Factory Automation Applications for Actuators, Sensors, Industrial Ethernet, and Fieldbus.

M12 Series with Ip67/68 Rating, Provides with 2, 3, 4, 5, 6, 8, 12, 17 Contacts, Different Pin Match Specific Applications. E.g, Sensor and Power Applications Require 3 or 4 Pins; Profinet and Ethernet Require 4 or 8 Pin Counts; Fieldbus, Can Bus and Devicenet Typically Use 4 or 5 Pin Counts; and Signal Requirements Usually Employ 12 Pins.

We Supply Full Series of M12 with Field Wireable Connector, Molded Cable Connector, Panel Connector, Overmoled Cables, Wire Harness and Accessories. Pvc (general) or Pur (oil Resistant) Cables Available with Customized Length According to User Requirements.





Q&A



1. When can I get the quotation?

Within 24 hours of getting the inquiry,if you are very urgent to get the price,please call us to give complete specifications about the cable.price will be calculated soon.

2. How long about the delivery?

Usually within 3-7 working days after payment,mainly according to the quantity.

3. What's your payment terms?

We accept T/T,L/C(bank transfer)

4. Do you accept the customized order?

Yes,we do.

5. Do you offer OEM&ODM?

Yes.OEM&ODM are available



Product display


M12 X Code PCB Female Rear M12 Panel Mount Connector 8 Pin For Sign 1M12 X Code PCB Female Rear M12 Panel Mount Connector 8 Pin For Sign 2

M12 X Code PCB Female Rear M12 Panel Mount Connector 8 Pin For Sign 3

M12 X Code PCB Female Rear M12 Panel Mount Connector 8 Pin For Sign 4
