Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Waterproof Level: | IP68 |
|---|---|---|---|
| Cable OD: | 3000mating Cycles | Operating Rating: | -40℃~105℃ |
| Warranty: | 2 Years | ||
| High Light: | Waterproof Solder Wire Cable Connector,K19 Metal Hose Plug Socket,Multicore Wire Cable Connector |
||

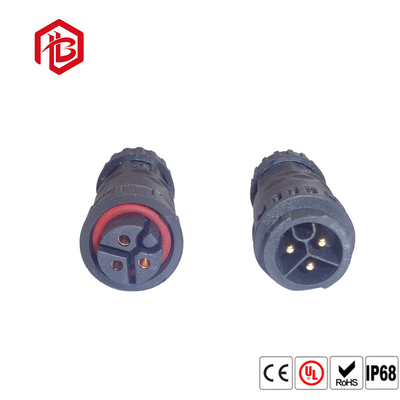

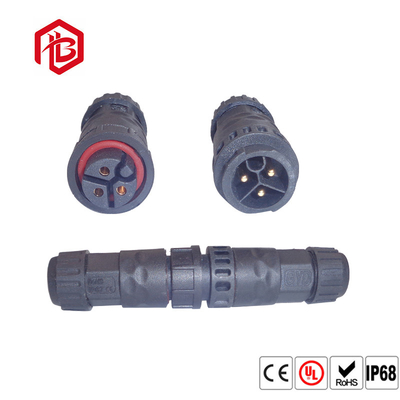

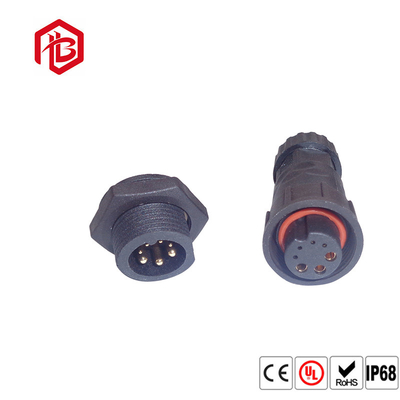

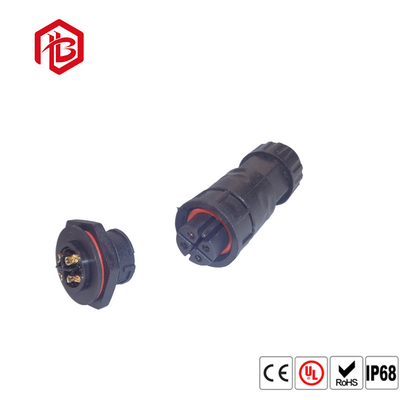

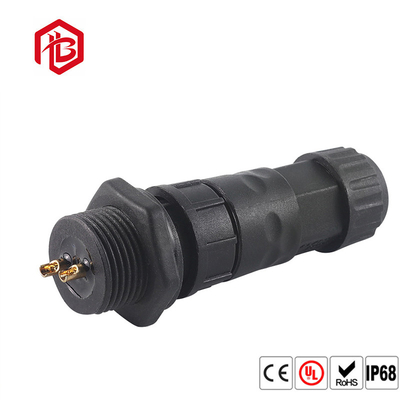

GYD-BETT K19 Multicore Circular Aviation Metal Hose Plug Socket Waterproof Cable Connector
Detailed Product Description
| Protection Level: | IP68 | Connecting Model: | Screw Locking |
|---|---|---|---|
| Pin: | Multicore | Current Rating: | 20A |
| Model: | K19 | Voltage Rating: | 300V |
| Contacts Numbers | 2 | 3 | 4 | 5 | 3+2 | 3+4 | 6 | 7 | 8-12 |
| Voltaga Rating | 250V | 250V | 250V | 250V | 60V | 60V | 250V | 100V | 100V |
| Current Rating | 16A | 16A | 12A | 8A | 6+2A | 6+2A | 15A | 5A | 5A |
Description of 2 to 4 Pole Connector
Screw locking waterproof connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors, screw locking K19 connectors will be a perfet option. it is widely used in many application.
| Operation Parameters | |
| Voltage Rating | 250VAC max |
| Current Rating | 16A max |
| Min Wire Size OD | 3.0mm ~ 6.5mm |
| Max Wire Size OD | 6.5mm ~ 10mm |
| Max.Cable Cross Section Area | 0.3mm2 ~ 2.5mm2 |
Features:
Main characteristics
Applicaiton of Bett K19 Connectors
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
