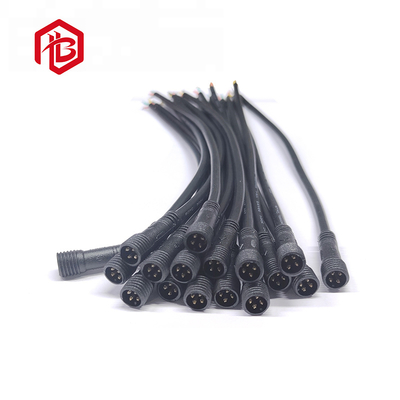

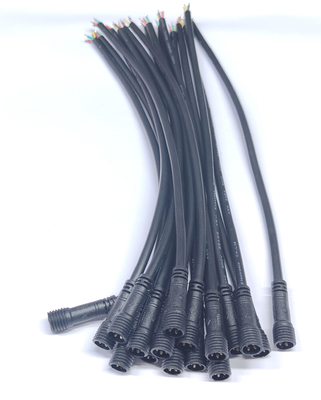

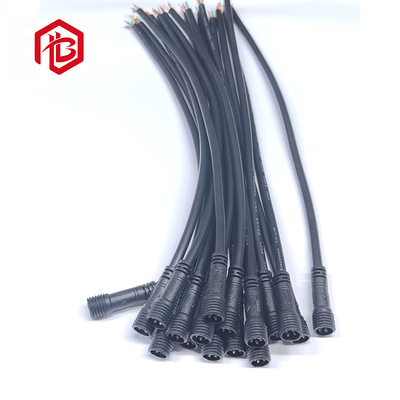

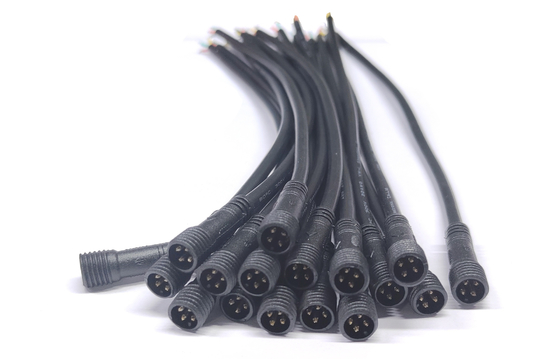

PVC M10 Wire Connector Ip67 IP68 Waterproof 2 3 4 5 Pin Led Outdoor Lighting Male Female Wire Connector

Brand Name:	BETT
Model Number:	M10
MOQ:	50sets
Price:	0.8$
Delivery Time:	7Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE UL

Supply Ability:

50sets

Product Description

Product Specification

Brand	Bett
scope of application	the LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens and so on
Types	waterproof plug/waterproof connectors/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug
Interface type	AC/DC
Shape	round/flat look
Process	stamping/welding/injection molding
Feature	waterproof
Contact material	pure phosphor copper
Joint material	PVC/PBT/PA66 / PC + ABS
Some conclusions	2-12 core
Pin number	2-12 needle
line length	any (mm)
Form	socket, plug stamping or injection after welding
Rated voltage	24 V DC 0 (AC 110 V, 110 V)
Current rating	1-50A
Breakdown voltage	1500 V or higher (special require should be mentioned in advance)
Working temperature	- 40 ~ 105 ° C
Protection grade	IP65 - IP68 (other requirement. When ordering, please put forward)
Wire materials	PVC, rubber, silicone, PE and so on, other according to customer requirements, routine for gb RVV sheath line
Certification	can according to customer's requirements with CCC, VDE, UL, ROHS, SGS, etc all kinds of wire
Appearance color	black, white, transparent, etc
Normal product	joint is made of PVC, wire type for CCC gb RVV sheath line, regular length for each 200 mm Can be designed and manufactured according to customer demand orientation, non-standard products
Some conclusions	2 core
Cable inside section	0.75 square (normal)
Cable length	any long can be customized for customer request, (20 cm) regular long male female each When ordering, please indicate some conclusions, insider cross-sectional area square number, color, line length, tail decortication and wetting length (normal is 3 cm and 3 mm), the other orders are required to submit
