Product Details:
Payment & Shipping Terms:
|
Material: | Nylon/ PVC | Color: | Black |
---|---|---|---|
Connector Type: | Waterproof Connector | IP Rating: | IP67/IP68 |
Connector Type: | Underground Cable Connector | Name: | 16 Amp Connector |
Highlight: | 16A IP67 Waterproof Connector,IP67 Underground Cable Connector,16A Underground Cable Connector |

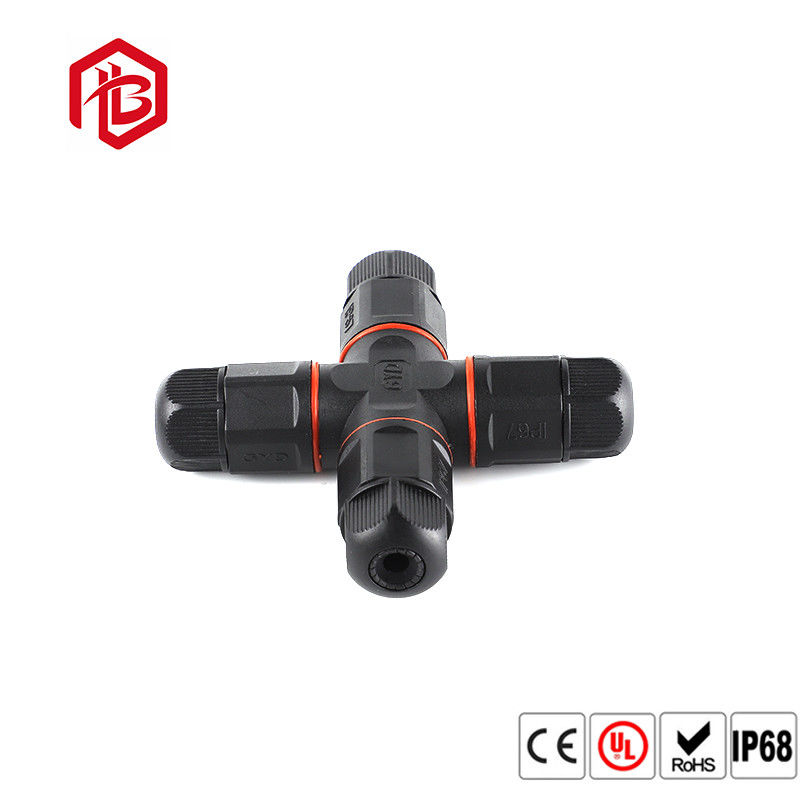

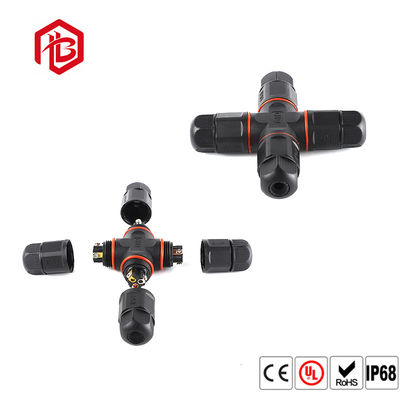

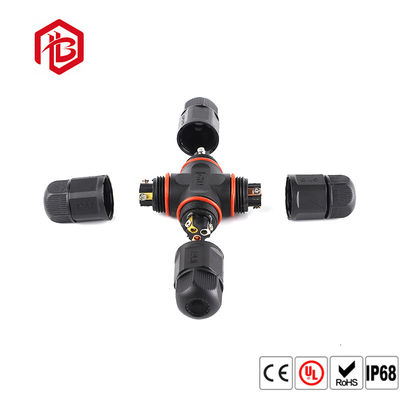

Underground Cable 2 3 4 Pole 16A IP67 Waterproof Connector
Detailed Product Description
Product Details: | 4 way type connector | Connector Type: | Screw Connector |
---|---|---|---|
Connector Pin: | 2 to 4 pin | Current Rating(A): | 10 A |
Usage Industry: | LED | Material | Pa66 |
Description of 4 Way Waterproof High Current Connector
Operation Parameters | |
Voltage Rating | 300VAC max |
Current Rating | 16A max |
Min Wire Size OD | 3.0mm ~ 6.5mm |
Max Wire Size OD | 6.5mm ~ 10mm |
Max.Cable Cross Section Area | 0.3mm2 ~ 2.5mm2 |
Features:
Waterproof 2 3 4 pin connector
Series: X type
Brand:Bett
Contact Plating: Gold plated over Brass
Contact Type:Pin or hole
Current, Rating: 15A for each pin
Diameter, calbe outlet:5.5-10mm
IP Rating:IP67/IP68
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000 types waterproof connector cable. Most of our connector is customized. We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2. Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
3. Q: Can you assured the quality?
A: Yes, we’ve have strict QC team, all products will be tested before delivery.
4. Q: What’s the terms of payment?
A: We can accept T/T, Paypal and Western Union
5. Q: What’s the delivery time?
A: It depends on the quantity you need, as usual it will takes 3-5 days for small quantity.
