High Current Waterproof Connector
Created with Pixso. M12 Hexagonal Head Metal Copper Nut Waterproof Connector 8C Signal

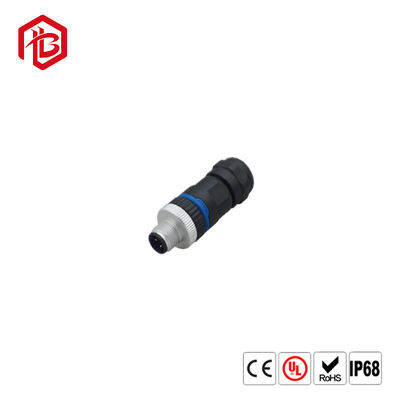

M12 Hexagonal Head Metal Copper Nut Waterproof Connector 8C Signal

Brand Name: Bett
Model Number: M12 assembly connector
MOQ: Negotiable
Price: Negotiable
Delivery Time: 3-7 working days
Payment Terms: L/C,T/T,Western Union/ Paypal
Detail Information
Place of Origin:
China
Certification:
CE, UL
Type:
Circular Connector
Product Name:
M12 Assembly Connector
Contact Plating:
Gold
Waterproof Grade:
Ip67
Ambient Temperature:
-25℃~+90℃
Gender:
Male & Female
Packaging Details:
Standard export carton
Supply Ability:
100000 / week
Highlight:

Right Angle M12 Waterproof Connector

,

IEC 61076-2-101 Waterproof Connector

,

Fix Screw m12 round connector

Product Description

 M12 hexagonal waterproof head metal copper nut waterproof connector 8C signal



Product description


Basic Product Information
Connector Series
M12
Gender
Male
Coding
A/B/D
Locking Type
Fix Screw
Mounting Type
Right Angle
Part No.
MB12MWAFFXXRA-X
* refers to coding type
** refers to pins number
General Infomation
Standard
IEC 61076-2-101
Insulation Resistance
≥100MΩ
Ambient Temperature
-25℃~+90℃
Contact Resistance
≤5mΩ
Connector Insert
TPU
Shielding
Unavailable
Connector Contacts
Brass with Gold Plated
Seal/O-ring
Epoxy resin/FKM
Coupling Nut/Screw
Zinc Alloy with Nickel Plated
Mating Endurance
>500 cycles
IP Rating
IP68/IP69K in locked condition
Certificate
UL/CE/ROHS/IP67/REACH/IP68

Packing details:
1. our standard packing: 1pcs connector put into a transparent polybag, every big polybag with a label. then put into a carton.
2. packing as buyer's option.


Delivery details:
1. the lead time for samples is 7~10 days, 10~15 days for the production.

2. for the shipping, the goods can be shipping by client's international express account like DHL,TNT,UPS,Fedex, or shipping by our forwarder.



Q&A


1. Q: What type waterproof connector do you have?


A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.


2. Q:Is the sample avaliable and free?

A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.


3. Q: Can you assured the quality?

A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.


4. Q: What’s the terms of payment?

A: We can accept T/T, LC, Paypal and Western Union


5. Q: What’s the delivery time?

A: It depends on the quantity, as usual it will takes 3-5 for small quantity.



Product display


M12 Hexagonal Head Metal Copper Nut Waterproof Connector 8C SignalM12 Hexagonal Head Metal Copper Nut Waterproof Connector 8C Signal

M12 Hexagonal Head Metal Copper Nut Waterproof Connector 8C Signal
