Product Details:
Payment & Shipping Terms:
|
| Product Name: | M12 Metal Connector | Contact: | Solder-cup Type |
|---|---|---|---|
| Application: | Sensors, Actuators, Encoders, Servo Motors | IP Rating: | IP67/IP68 |
| Connector Material: | Plastic,metal | Gender: | Male And Female |
| High Light: | M12 Metal Connector 8pin,M12 Male And Female Assembly Connector |
||

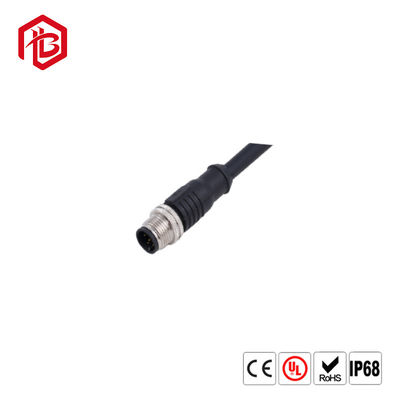

M12 sensor aviation plug 8pin metal shielded elbow A-type male and female assembly connector
Product description
Characteristics of M12 Series
| General Characteristics | ||||||
| Number of contact | 3 | 4 | 5 | 8 | 12 | 17 |
| Locking system | screw M12*1.0 | |||||
| Termination | solder, moulded on cable, crimp or screw clamp | |||||
| Wire guage in mm² | 0.14/0.25/0.34/0.5 etc | |||||
| Wire guage in AWG | 26/24/22/20 etc | |||||
| Shell protection | IP67/IP68 | |||||
| Mechanical operation | >500 mating cycles | |||||
| Upper temperature | +85℃ | |||||
| Lower temperature | -25℃ | |||||
| Electrical Characteristics | ||||||
| Rated voltage | 250V | 60V | 30V | |||
| Pollution degree | III | |||||
| Test voltage | 500V±15V | |||||
| Rated current(40℃) | 4A | 1.5A | ||||
| Contact resistance | ≤10mΩ | |||||
| insulation resistance | ≥100MΩ | |||||
| Materials | ||||||
| Pin contact | CuZn | |||||
| Socket contact | CuSn | |||||
| Contact plating | Au | |||||
| Upper temperature | PA66(UL 94V-0) | |||||
| Female insent | PA66(UL 94V-0) | |||||
| Material of cable jacket | PVC or PUR | |||||
| Screw | CuZn | |||||
| Nut | CuZn | |||||
Our services
- Fast Samples delivery service
- Quote within 24 hours
- Professional teams with RD & Sales for your projects
- Special service for your urgent case
- Customer is always our focus.
Q&A
Q1. Are you a factory or trading company?
A: We are a factory,more than 5,000 square. Located in Shenzhen,China.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Product display
