| Name: | Waterproof SP Series Connector | Work Temperature: | -40°C~+105°C |
|---|---|---|---|
| Coupling: | Threaded | IP Rating: | IP68 Waterproof Level |
| Shell Material: | PC, Nylon66, Fire Resistance: | Connector Type: | Straight And Angled |
| High Light: | IP68 Waterproof SP Series Connector,IP67 Waterproof SP Series Connector,SP Series Waterproof SP Series Connector |
||
SP Series Connector WEIPU SP11 SP13 SP17 SP21 SP29 1 2 3 4 5 6 7 9 12 14 16 19 22 24 26 Pin IP67 IP68 Waterproof Cable
Product description
| IP Rating | IP68 |
| Coupling | Threaded |
| No.of Contact |
SP11: 2-5 ; SP13: 2-9 SP17: 2-10 ; SP21: 2-12 SP29: 2-26 |
Material and Spec
| Coupling | Threaded |
| Shell Material | PC, Nylon66, fire resistance: V-0 |
| Insert Material | PPS, max temperature 260℃ |
| Contact Material | Brass with Gold Plating |
| Termination |
Solder: SPl3 , SPl7 , SP21 , SP29 Crimp: SPl7, SP21 , SP29 Screw: SP21, SP29 (Ø2.5 , Ø3 , Ø3.5mm contact) |
| Cable outer diameter range |
SP11: 4 - 6.5 MM SP13: 4 - 6.5 MM ; 5 - 8 MM SP17: 6 - 10 MM SP21: 4.5 - 7 MM ; 7 - 12 MM SP29 : 13 - 16 MM |
| IP Rating | IP68 |
| Mating Cycle | 500 |
| Temperature Range | -40~+85℃ |
| Insulation Resistance | 2000 MΩ |
1. SP Series of threaded IP68 Connectors are perfect for your application.This particular model has a bigger and stronger shell. That coupled with the IP68 rating excels in harsh environments.
2. When choosing a female connector, this version should really be one you consider,morever, These robust connectors can be used for both cable to cable (inline) and cable to panel-mount connections.
3. With its IP68 rating, each product is excellent within harsh environments, giving you peace of mind. All models are highly reliable and excellent quality.
Q&A
Q: What is the Minimum Order Quantity(MOQ)?
A: Normally, MOQ is 1000pcs, but special requirements can be accepted.
Q: How much do I need to pay for your OEM service?
A: No need to pay extra cost for our OEM service if order quantity over 1000 pcs. The OEM cost includes in the unit price.
Q: What is the lead time?(How long do you need me to prepare my goods?)
A: 2-4 days for sample orders, 10-15 days for mass production orders (based on different quantities, OEM , etc.)
Q: How will you deliver goods to me?
A: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.
Q: How long do I need to wait before my goods arrive?
A: 5-7 days for air transportation, 3-5 days for international express.
Q: How is your product quality?
A: Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality according to AQL standard. DOSIN always care what you care!
Q: What is your warranty?
A: Our warranty is 12 months after delivery, DOSIN pays high attention to after-sales service.
.

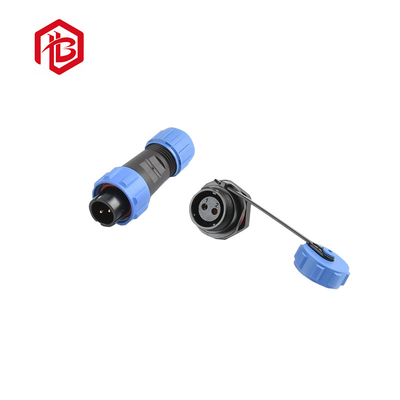

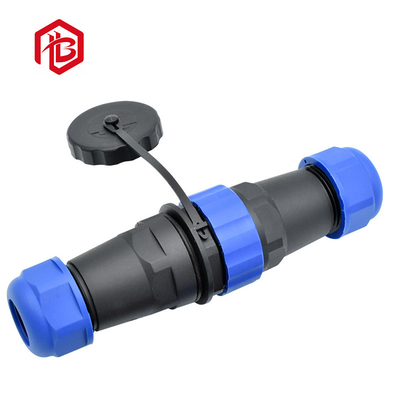

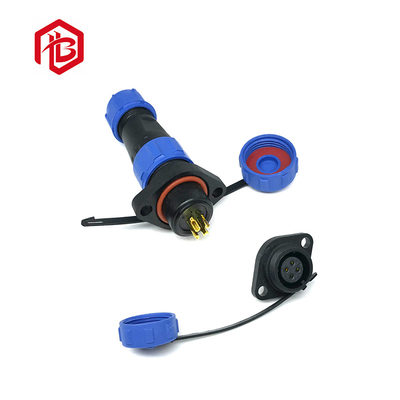

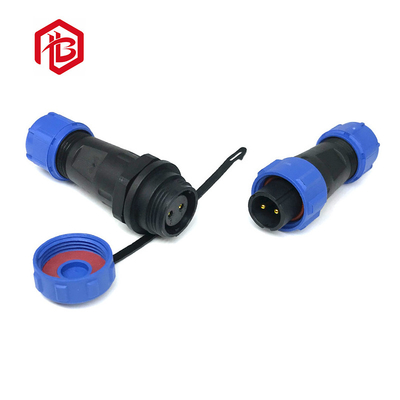

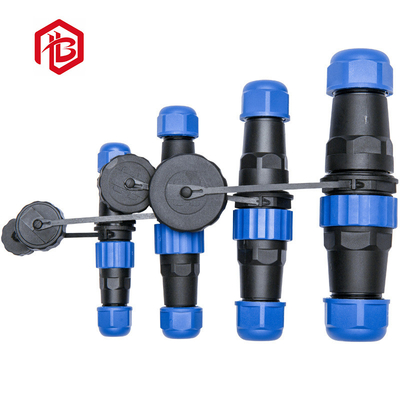

Product display
